Product Description:

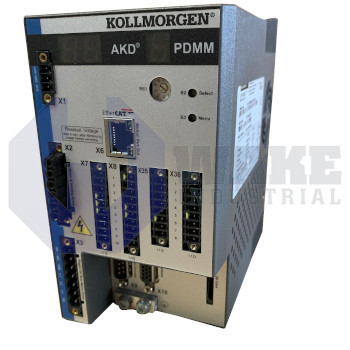

The AKD-M00306-MCEC-0000 is a programmable servo drive built by Kollmorgen as part of the AKD-PDMM Programmable Drives series. The drive combines a power stage with an embedded motion controller, allowing a single module to energize and coordinate brushless servomotors. Used inside automated assembly machines, indexing tables, and palletizers, it converts supply power into regulated three-phase outputs while synchronizing axes over an EtherCAT network. Its design targets applications that need a compact footprint, deterministic communication, and integrated PLC functionality for precise multi-axis motion.

At the power stage, the drive supplies a continuous phase current of 3 Arms, which is suitable for small-to-medium torque actuators, while the short-term ceiling rises to 9 Arms for acceleration bursts. Mains compatibility spans single-phase or three-phase inputs at 120/240 VAC, letting the unit operate from standard factory services. Internal electronics are energized separately with 24 Vdc @ 1.25 A, so control circuits remain active through brownouts or emergency-stop events. The housing carries an IP20 rating, indicating finger-safe openings suited for cabinet mounting rather than open-machine placement. Six digital inputs and two digital outputs handle local sequence interlocks, and thermal supervision limits sustained operation to 120 °C with a shutdown enforced at 127 °C.

High-speed control is achieved through an EtherCAT update interval of 4 kHz, which pairs with an 800 MHz processor to execute interpolation, gearing, and safety checks within each cycle. User programs, cam tables, and configuration files reside in 64 MB of flash memory, eliminating the need for external storage cards. Despite these resources, the package occupies only 168 × 89 × 156 mm, simplifying multi-axis panel layouts and maintaining airflow around neighboring equipment. These real-time features support tight position loops, rapid homing, and deterministic diagnostics across the EtherCAT motion network.
