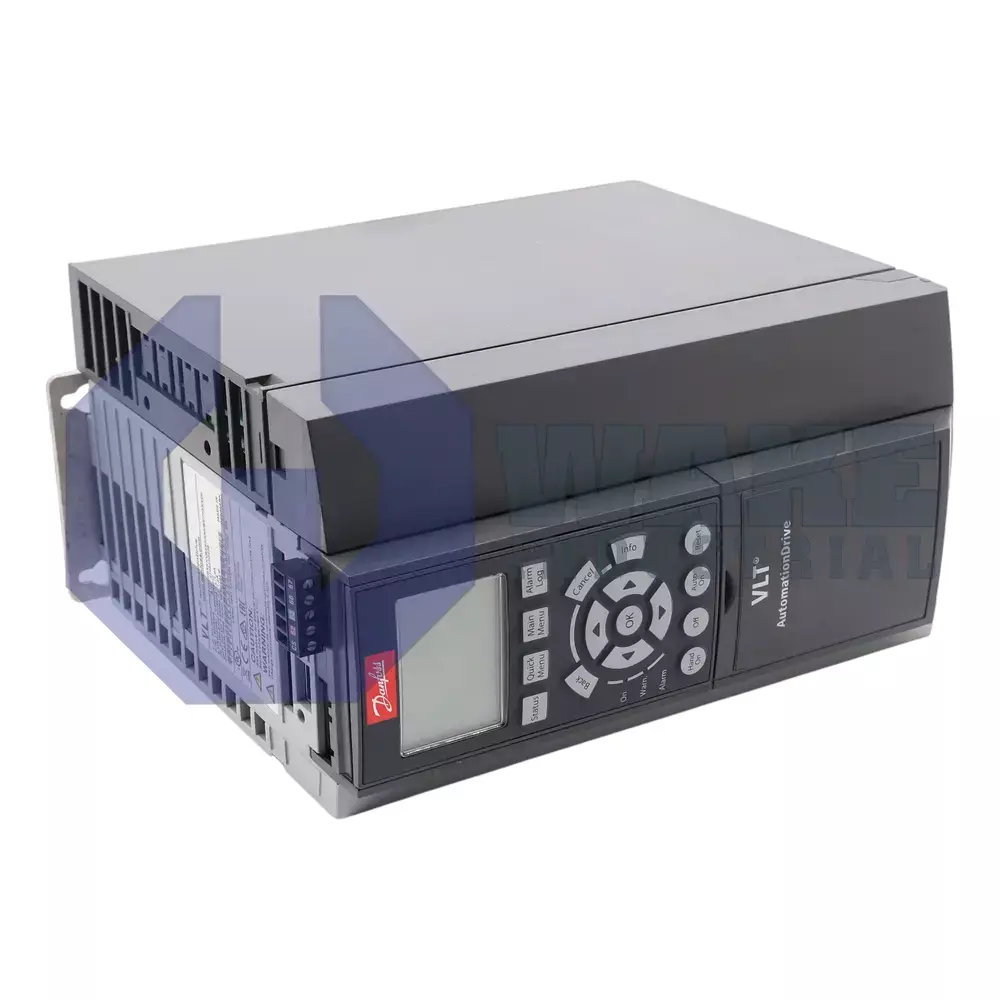

The Danfoss FC-302PK37T5E20H1 is part of the VLT FC 302 Automation Drives series and has a power rating of 0.37 kW, equivalent to 0.50 HP. It supports three-phase power with a mains voltage range of 380 to 500 VAC and features IP20 chassis protection. This drive is designed for normal cabinet mounting in A, B, and C frames and includes an RFI filter rated Class A1/B (C1).
Internal Product Review
The FC-302PK37T5E20H1 is a Danfoss VLT FC 302 automation drive designed for precise motor control on 380 - 500 VAC three-phase power. IP20/chassis protection and a Class A1/B (C1) RFI filter support clean cabinet integration and dependable operation in automated systems. A strong choice for compact drive applications requiring stable, efficient performance.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The FC-302PK37T5E20H1 variable frequency drive is manufactured by Danfoss and belongs to the VLT FC 302 Automation Drives series. The unit converts fixed-frequency mains power into a controlled AC output so that induction motors can accelerate, decelerate, or maintain a constant speed under PLC supervision. It is used with conveyor sections, centrifugal pumps, and ventilation fans where electronic speed control improves process consistency, lowers power consumption, and removes the need for mechanical throttling components found in older installations.
The drive accepts a supply range of 380–500 VAC, covering common 400 V industrial grids in North America and Europe. Because it is designed for three-phase power, it runs directly from compatible plant distribution transformers without single-phase derating. Its continuous motor output is rated at 0.37 kW, which corresponds to 0.50 HP when motors are rated in horsepower. The drive has an IP20 / chassis enclosure, so its live parts remain protected against finger contact when the unit is installed inside a closed panel. The surrounding cabinet must provide the sealing needed to protect the drive from moisture, dust, and other airborne contaminants. The input range, output rating, and enclosure type also support appropriate cable sizing, circuit breaker selection, and cabinet airflow planning.
The drive supports normal cabinet mounting for A, B, and C frames, which uses established mounting patterns within the range and helps keep internal wiring runs short. Conducted emissions are attenuated by an integrated RFI Class A1/B (C1) filter, supporting compliance with residential and light-industrial electromagnetic compatibility limits when shielded motor cables and proper grounding methods are used. The model belongs to the VLT AutomationDrive FC product group and carries series code 302. Its controlled output allows the connected motor to follow programmed speed references without mechanical speed-control devices. PLC supervision can coordinate acceleration and deceleration with the operating sequence of the surrounding machinery.
