The SS700U motor delivers a torque of 700 oz-in (494 N-cm) and operates at speeds of 72 RPM at 60 Hz or 60 RPM at 50 Hz. Manufactured by Danaher, it belongs to the Slo-Syn Synchronous Motors series and comes in both 120VAC and 240VAC versions. The motor features a NEMA 42 frame size.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

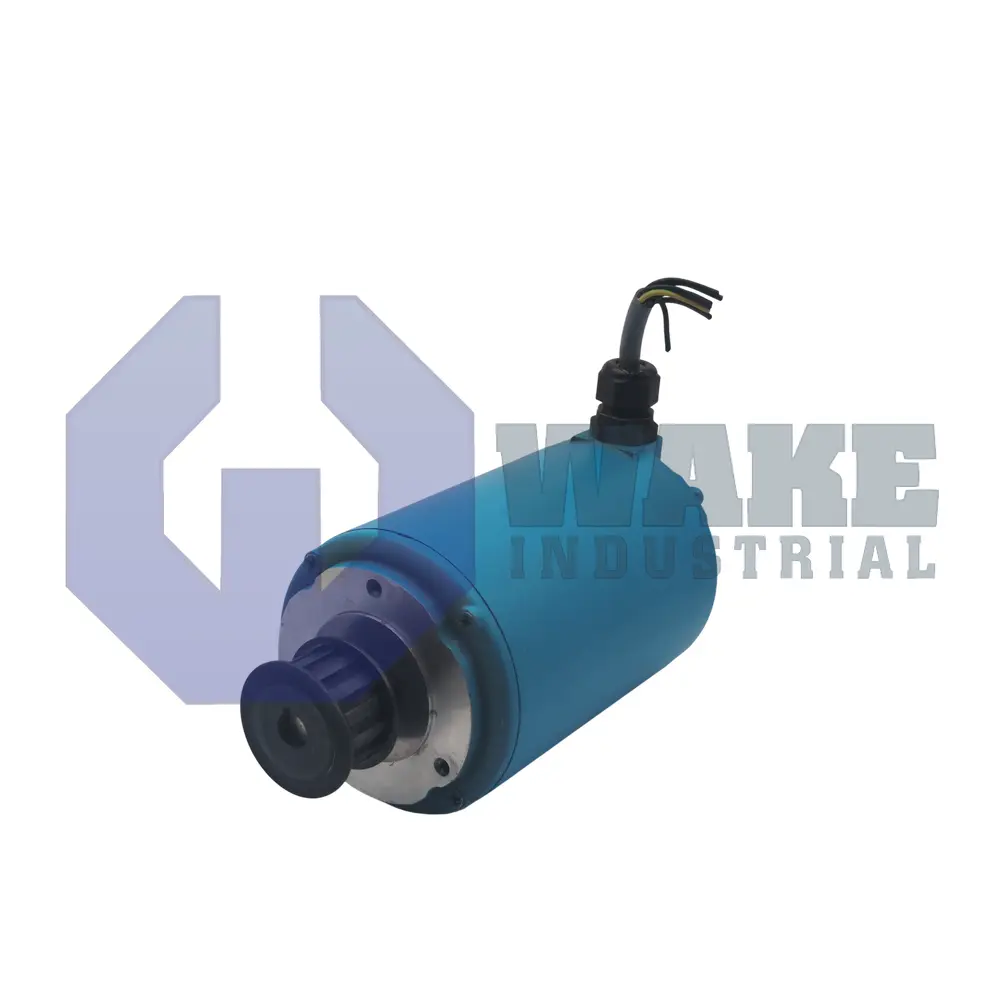

Danaher produces the SS700U Synchronous Motor as a precise solution for motion control applications and industrial automation. The 120 VAC supply powers this device while it operates under single-phase systems. Even though it receives 60 Hz power the motor spins at 72 RPM. When supplied with a 50 Hz input frequency the device moves at 60 RPM.
Balanced system performance depends on the R/C phase shifting network in the SS700U motor design. The motor starts better and achieves improved operation smoothness when loaded. This motor produces torque at a level of 700 oz-in which translates to 494 N-cm. The established torque output maintains a reliable output performance in controlled-speed systems. The device consumes a steady power amount of 1.1 amps during operation at 120 VAC voltage. The SS700U motor exists as part of the Superior Electric Slo-Syn series. The Slo-Syn product line provides both precise operational performance and extended operational durability. This device achieves basic protection against solid objects because it has an IP42 rating. The Class B standards determine the thermal stability properties of the insulation system. The motor operates effectively in temperatures between -40°C and 60°C without limits. The motor provides environmental storage capability from -40°C through 130°C.
This SS700U motor operates under non-condensing humidity levels that extend from 5% to 95%. This device has 0.42 lb-in² nearly equal to 30 kg-cm² as its stated load inertia value. Users can easily connect this motor to various frames because its frame structure meets NEMA 42 requirements. The device provides connection options through both leaded wiring and terminal box wiring for flexible installation cables. Secure installation is supported by the unit through leaded or terminal box connection methods based on design requirements. The UL Listed and CE Certified versions of the SS700U can be obtained by customers.
Frequently Asked Questions about SS700U:
Q: How does R/C network help SS700U motor?
A: The R/C network in SS700U motor by Danaher improves startup phase alignment and reduces mechanical stress during engagement.
Q: Why is CE certification important for SS700U?
A: Danaher's SS700U motor meets CE certification, ensuring compliance with international safety and performance standards for industrial devices.
Q: How does SS700U manage mechanical vibrations?
A: SS700U motor by Danaher uses a balanced internal structure that minimizes vibrations, supporting consistent low-speed operation.
Q: What makes SS700U suited for harsh temperatures?
A: The Danaher SS700U motor tolerates extreme cold and heat due to its ruggedized housing and verified insulation properties.
Q: Why use Class B insulation in SS700U motor?
A: Class B insulation in Danaher SS700U motor ensures thermal protection, maintaining motor integrity under elevated internal temperatures.
