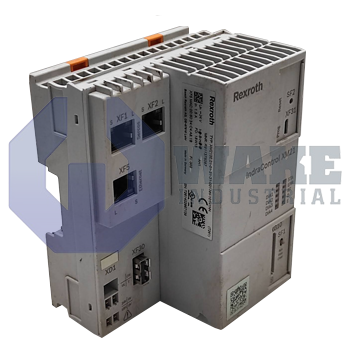

XM2201.01-01-31-31-301-NN-105N2NN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911380756
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat XM2201.01-01-31-31-301-NN-105N2NN is part of the XM21 IndraControl Systems series and utilizes an Intel Atom E660T processor running at 1300 MHz with 512 MB DRAM. It supports a nominal voltage of 24 V DC and has a maximum power draw of 36 W, with a total weight of 0.38 kg. The controller is equipped with a 1 Gbit Ethernet port, IP20 protection, and can support up to three extension modules.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The XM2201.01-01-31-31-301-NN-105N2NN industrial controller is built by Bosch Rexroth Indramat for the XM21 IndraControl Systems series. It functions as the central processor in modular production machines, coordinating motion, safety, and process I/O across Sercos and Ethernet networks. Mounted on a DIN rail inside a protected cabinet, the unit supplies deterministic sequence control, maintains communication with decentralized terminals, and bridges higher-level supervisory systems to field devices.
Its processing layer is built around an Intel Atom E660T running at 1300 MHz; this combination provides adequate instruction throughput for multi-axis interpolation and fast Boolean logic. Program code and buffers reside in 512 MB DRAM, while application updates can be loaded through a USB stack that offers 1 host port and 1 device port. A single automation Ethernet interface supports 1 Gbit Ethernet, enabling simultaneous PLC communication and web diagnostics without saturating bandwidth. The backplane draws power from a nominal 24 V DC supply; a 2.5 A fuse on the feed line limits fault energy, and steady-state consumption does not exceed 1.5 A. Up to three extension cards can be attached to incorporate additional serial, analog, or specialized bus functions, and the aluminum enclosure mass is 0.38 kg so mechanical stress on the rail is minimal.
Fieldbus coupling is handled by the integrated S20 master; the bus sources 2 A to remote terminals and exchanges data over a 100 Mbit/s link. A separate Sercos interface closes control loops with a cycle time of 250 μs, supporting tight position synchronization. The controller’s thermal budget is limited to 36 W, allowing passive cabinet airflow in many installations. The S20 master accepts up to 63 I/O slices before a repeater is required. The housing carries a protection rating of IP20, which indicates finger-safe construction but no liquid ingress resistance.
Frequently Asked Questions about XM2201.01-01-31-31-301-NN-105N2NN:
Q: What type of processor powers the XM2201.01-01-31-31-301-NN-105N2NN controller?
A: This model is built with an Intel Atom E660T processor running at 1300 MHz.
Q: How much RAM is available in the XM2201.01-01-31-31-301-NN-105N2NN controller?
A: The XM2201.01-01-31-31-301-NN-105N2NN offers a RAM capacity of 512 MB DRAM.
Q: How many extension modules can be added to the XM2201.01-01-31-31-301-NN-105N2NN?
A: A total of three extension modules can be connected to this unit.
Q: What is the maximum Ethernet port speed supported by the XM2201.01-01-31-31-301-NN-105N2NN?
A: Its Ethernet port supports speeds up to 1 Gbit for fast network communication.
Q: What is the required nominal voltage for the XM2201.01-01-31-31-301-NN-105N2NN controller?
A: The controller operates with a nominal voltage of 24 V DC.
