VT-VPCD-1-1X/V0/1-0-1 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R901044346
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat VT-VPCD-1-1X/V0/1-0-1 is part of the VT-VPCD Drives series and operates on a voltage range of 21 to 30 VDC with a maximum current consumption of 3.5 Amps. This unit features a card size of 100 x 160 mm, supports an RS-232 serial interface, and has a 2 millisecond scan time. It is designed for ambient temperatures between 0 and 50 °C and weighs 0.2 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

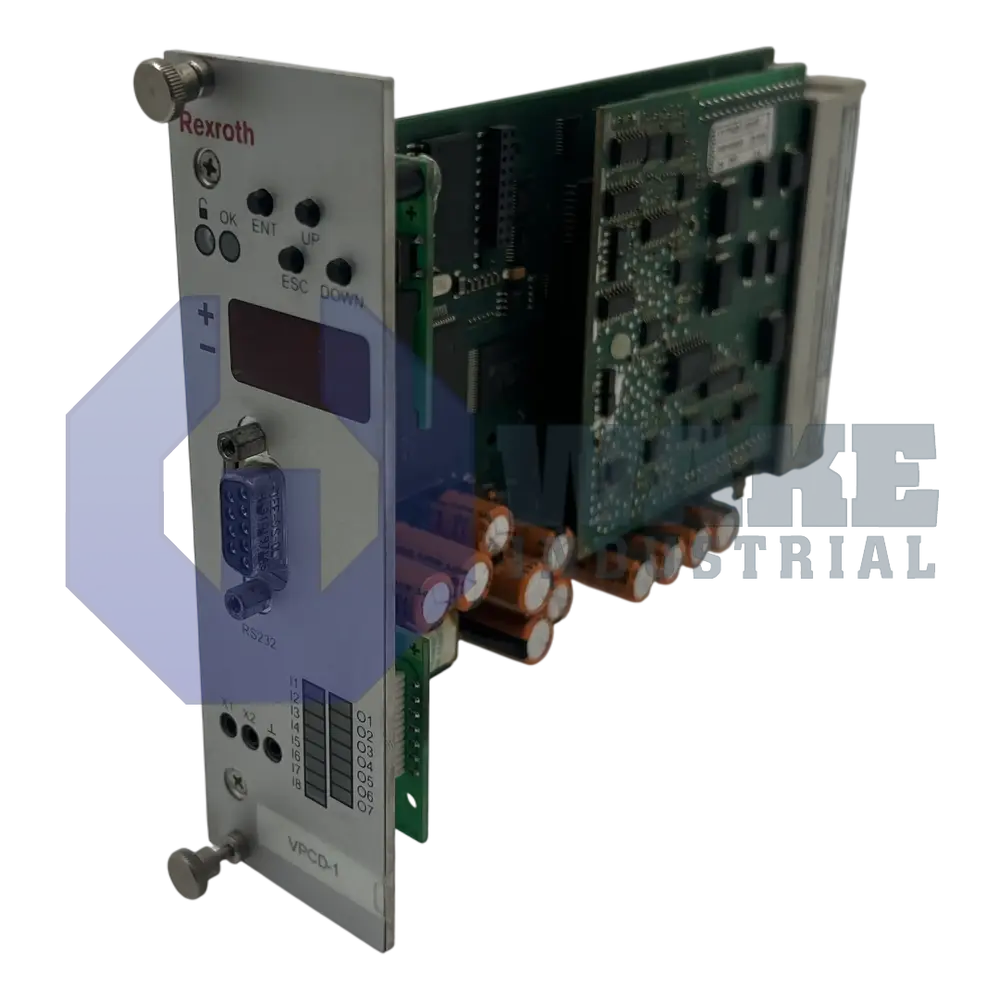

The VT-VPCD-1-1X/V0/1-0-1 is an electronic plug-in card manufactured by Bosch Rexroth Indramat for the VT-VPCD Drives series. Powered from a 24 V DC control rail, it exchanges process data through serial and local bus channels. Inside automated equipment, the module converts operator or controller analog references into drive-ready signals and forwards status information upstream, acting as an interface layer between machine control logic and power electronics. This arrangement allows control commands and operating feedback to pass between the rack and the connected drive without requiring a separate interface module.
The card operates within a supply window from 21 V to 30 V during normal use. Under maximum load, the circuitry draws 3.5 A, so cabinet power reserves must account for this peak. The analog input presents 100 kΩ of resistance, reducing loading on delicate control sources and helping preserve signal fidelity. Negative reference voltages down to -10 V are accepted, and the reference output can source up to 30 mA when required. Internal sampling is completed every 2 ms, providing a 500 Hz update rate for drive parameters. Communication to supervisory controllers is handled by an RS-232 interface, while a DIN 41612 type G, 64-pole backplane connector routes supply, I/O, and bus lines to the rack. The front plate height is 128.4 mm, which aligns with standard Eurocard subrack dimensions.
The local bus can extend up to 280 m, supporting distributed racks without repeaters. Positive reference commands reach a ceiling of 10 V, enabling bipolar control when combined with the negative channel. Operation is permitted from 0 °C to 50 °C, and storage is tolerated between -20 °C and 70 °C. The printed circuit board measures 100 × 160 mm, and the assembly weighs only 0.2 kg, which helps keep rack loading low. Its compact board format also supports dense card placement in control cabinets where several modules share the same backplane.
Frequently Asked Questions about VT-VPCD-1-1X/V0/1-0-1:
Q: What is the operating voltage range for the VT-VPCD-1-1X/V0/1-0-1 drive?
A: This drive operates at an input voltage of 24 VDC, with an allowable range from 21 V to 30 V.
Q: What is the maximum current draw for the VT-VPCD-1-1X/V0/1-0-1?
A: The maximum current consumption for this unit is 3.5 A during operation.
Q: What is the analog input resistance value of the VT-VPCD-1-1X/V0/1-0-1 drive?
A: The analog input resistance for this model is rated at 100 kΩ.
Q: What type of serial interface does the VT-VPCD-1-1X/V0/1-0-1 include?
A: This drive features an RS-232 serial interface for communication purposes.
Q: What scan time does the VT-VPCD-1-1X/V0/1-0-1 drive offer?
A: The scan time is specified at 2 milliseconds, enabling fast processing cycles.
