VT-VPCD-1-15/V0/1-P-1 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R901089559
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

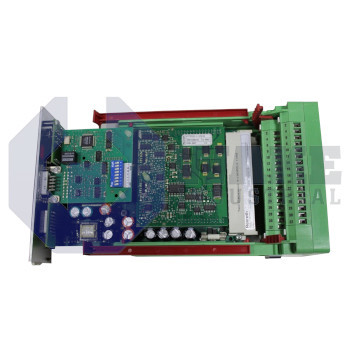

The Bosch Rexroth Indramat VT-VPCD-1-15/V0/1-P-1 is a drive card from the VT-VPCD Drives series that operates at 24 VDC with a current consumption of 3.5 A. This drive features a 10 mV analog output resolution, ±10 V analog output voltage, and is equipped with a 64-pin DIN 41612 G connector. The card measures 100 x 160 mm and weighs 0.2 kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The VT-VPCD-1-15/V0/1-P-1 is a plug-in control card manufactured by Bosch Rexroth Indramat for the VT-VPCD Drives series. Installed in Eurocard racks, it conditions signals and generates command outputs that regulate valves, actuators, and other drive components within industrial automation systems for coordinated control tasks. By delivering programmable voltage or current references and exchanging data over a serial link, the board serves as the interface between higher-level controllers and field devices, supporting closed-loop operation where cabinet space is limited and rack-mounted electronics are preferred.
The analog output stage operates over ±10 V, and each step is resolved in 10 mV, allowing fine adjustment of proportional devices. The card is powered from a single 24 VDC supply and draws up to 3.5 A, so cabinet power distribution must account for that load. A scan time of 2 ms refreshes internal calculations fast enough for typical hydraulic and servo loops in industrial equipment. For input signals, the module offers 100 Ω of current input resistance and accepts a reference current of 30 mA, while an internal reference voltage of ±10 V can be supplied to external circuits. An onboard RS-232 interface with a 9-pole D-Sub connector permits parameter setting and diagnostics without removing the module.
The Eurocard footprint of 100 × 160 mm pairs with a component-side width of 35.56 mm and a front plate height of 128.4 mm, so the board fits standard DIN 41494 sub-racks. All field and back-plane connections terminate on a 64-pin DIN 41612 G header, which keeps rack integration straightforward and leaves the front edge available for module access. A high-impedance voltage input of 100 kΩ minimizes loading on upstream PLC outputs, and the assembly weighs only 0.2 kg, which keeps the card easy to handle during installation in densely populated racks.
Frequently Asked Questions about VT-VPCD-1-15/V0/1-P-1:
Q: What is the analog output voltage range of the VT-VPCD-1-15/V0/1-P-1 drive card?
A: The VT-VPCD-1-15/V0/1-P-1 supports an analog output voltage of ±10 V.
Q: What type of connector does the VT-VPCD-1-15/V0/1-P-1 card use?
A: This card uses a 64-pin DIN 41612 G type connector for interfacing.
Q: What is the current consumption of the VT-VPCD-1-15/V0/1-P-1 card?
A: The VT-VPCD-1-15/V0/1-P-1 has a current consumption of 3.5 A during operation.
Q: What is the voltage input resistance specification for the VT-VPCD-1-15/V0/1-P-1?
A: The device operates with a voltage input resistance of 100 kΩ.
Q: Which serial interface is available on the VT-VPCD-1-15/V0/1-P-1 drive card?
A: A serial interface of RS 232 with a 9-pole D-Sub connector is provided on this model.
