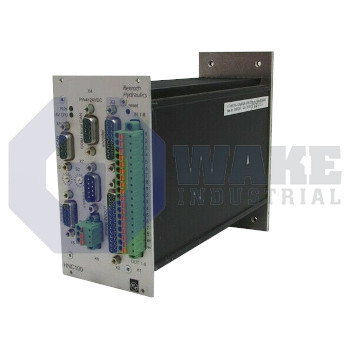

VT-HNC100-1-20A/W-08-I-0/IBUS12 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R900970247
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat VT-HNC100-1-20a/W-08-I-0/IBUS12 is a digital axis controller from the VT-HNC Digital Axis Controllers series designed for one hydraulic axis. It features eight digital inputs and eight digital outputs, with four current input channels and four voltage input channels. The controller is wall-mountable, weighs 1.0 kilograms, and supports fieldbus communication via INTERBUS-S.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The VT-HNC100-1-20a/W-08-I-0/IBUS12 digital axis controller is produced by Bosch Rexroth Indramat as a member of the VT-HNC Digital Axis Controllers series. Within the broader Digital NC control HNC100 product line, it is the version configured for one hydraulic axis, allowing closed-loop positioning and pressure regulation of servo-hydraulic cylinders. The unit mounts directly on a wall and serves as the embedded motion processor that links high-level PLC commands to proportional valves and transducers in presses, molding machines, endurance test stands, and other demanding industrial applications.
Electronics on this controller belong to component series 2, so firmware and terminal layouts align with the second hardware release. Four current-loop inputs are provided; each is terminated with 100 Ω ±0.2 % to match common 4–20 mA transmitters, and the converter resolves signal changes down to 5 µA. Two current outputs reproduce command values for external amplifiers, while four voltage inputs with 200 kΩ ±2 % impedance accept ±10 V feedback. The module also supplies four voltage outputs for reference generation. A block of 8 inputs and 8 outputs supports limit switches and status bits, and motion programs exchange data with higher-level control systems over the INTERBUS-S fieldbus. Mechanical depth is 204 mm, allowing placement inside shallow electrical cabinets without interfering with airflow around adjacent equipment.
The remaining envelope measures only 71 mm in width and 155 mm in height, so several controllers can be arranged side by side on a back-panel rail. Net mass is just 1.0 kg, which simplifies handling during maintenance and minimizes load on light-gauge mounting plates. The analog converter for the voltage inputs delivers a resolution of 5 mV, enabling fine setpoint trimming when proportional valves are driven at low flow. These dimensions and signal characteristics suit precise single-axis hydraulic motion in compact hydraulic control cabinets and similar equipment.
Frequently Asked Questions about VT-HNC100-1-20A/W-08-I-0/IBUS12:
Q: How many hydraulic axes can the VT-HNC100-1-20a/W-08-I-0/IBUS12 axis controller support?
A: The VT-HNC100-1-20a/W-08-I-0/IBUS12 is configured to control a single hydraulic axis.
Q: How many digital inputs and outputs are available on the VT-HNC100-1-20a/W-08-I-0/IBUS12 controller?
A: This model offers 8 digital inputs and 8 digital outputs for flexible system integration.
Q: Which fieldbus interface is featured on the VT-HNC100-1-20a/W-08-I-0/IBUS12 axis controller?
A: The VT-HNC100-1-20a/W-08-I-0/IBUS12 provides connectivity via INTERBUS-S fieldbus.
Q: How many current input channels does the VT-HNC100-1-20a/W-08-I-0/IBUS12 support?
A: There are 4 dedicated current input channels on this controller model.
Q: What is the mounting method for the VT-HNC100-1-20a/W-08-I-0/IBUS12 axis controller?
A: This controller uses a wall-mounting method for easy installation.
