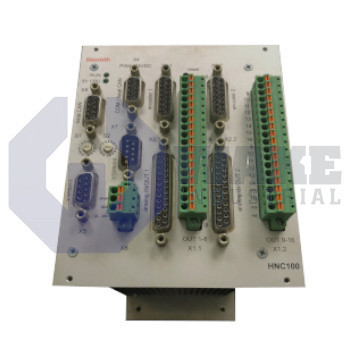

VT-HNC100-1-1X-150-1 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R900911887
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat VT-HNC100-1-1X-150-1 is part of the VT-HNC Digital Axis Controllers series and is designed for controlling a single hydraulic axis. It features a 16/32-bit MC68376 processor, 256 KB of RAM, 1 MB of flash memory, and operates with a power consumption of 8 watts. This controller provides 4 voltage input channels with a resolution of 5 mV and 2 current output channels.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The VT-HNC100-1-1X-150-1 digital axis controller is manufactured by Bosch Rexroth Indramat within the VT-HNC Digital Axis Controllers series. Intended for one hydraulic axis, it coordinates servo-valves, encoders, and pressure transducers so a machine can execute closed-loop motion profiles without an external PLC. The module forms the core of a Digital NC control HNC100 installation and therefore serves as the command element in presses, molding equipment, and other hydraulic automation stations where precise axis positioning is required.
Total dissipation is limited to 8 W, allowing installation in densely populated panels. Control algorithms run on a 16/32-bit MC68376 processor, and the axis version accepts four current input channels that present 100 Ω of input impedance with a granularity of 5 µA. Two current output channels drive valve coils directly, while the incremental encoder interface tracks feedback signals up to 250 kHz for tight position loops. For setup or diagnostics, an RS-232 port operates at 9.6 KBaud. Because the card belongs to component series 1, it maintains electrical layouts and I/O allocation common to earlier HNC100 designs.
Program code resides in 1 MB of flash EPROM, runtime variables occupy 256 KB of RAM, and non-volatile parameters are backed up in an 8 KB EEPROM. The analog section also provides four voltage input channels with 200 kΩ of impedance and a resolution of 5 mV. Four voltage outputs, each able to source or sink ±10 mA, cater to servo-valve electronics or external set-point devices. By combining these memory resources with deterministic analog outputs, the controller can store complex motion programs, refresh process data cyclically, and maintain accuracy on hydraulic axes throughout continuous industrial service.
Frequently Asked Questions about VT-HNC100-1-1X-150-1:
Q: What axis version does the VT-HNC100-1-1X-150-1 support?
A: The VT-HNC100-1-1X-150-1 digital axis controller is designed for a single hydraulic axis.
Q: How many current input channels are available on the VT-HNC100-1-1X-150-1?
A: This controller provides 4 current input channels for monitoring and control.
Q: What is the current input resolution for the VT-HNC100-1-1X-150-1?
A: The current input resolution on this model is 5 µA, allowing for precise measurement.
Q: What type of processor is used in the VT-HNC100-1-1X-150-1 controller?
A: It features a 16/32-bit MC68376 processor for its control functions.
Q: What is the power consumption of the VT-HNC100-1-1X-150-1 digital axis controller?
A: The VT-HNC100-1-1X-150-1 controller consumes 8 watts of power during operation.
