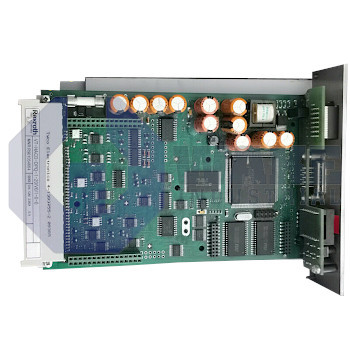

Rexroth, Indramat, Bosch Digital Injection and Ejector Controller in the VT-HACD Series. This Digital Injection and Ejector Controller features a Factory Assigned Control Loops, Bus Interface of Without Option, and Device Type of Basic Device.

VT-HACD-DPQ-1-20-V0-1-0-0

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
Rexroth, Indramat, Bosch Digital Injection and Ejector Controller in the VT-HACD Series. This Digital Injection and Ejector Controller features a Factory Assigned Control Loops, Bus Interface of Without Option, and Device Type of Basic Device.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a VT-HACD-DPQ-1-20-V0-1-0-0 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Rexroth Bosch Group is leader in providing electric drives and controls, liner motion technologies and hydraulics. The VT-HACD-DPQ-1-20-V0-1-0-0 is one of the significant products used for electro-hydraulic injection molding machines.

The mapping requirements of the VT-HACD-DPQ-1-20-V0-1-0-0 are as below:

  • PC with WIN NT/2000, with an available COM port or one of the specified USB/RS232 converters  BODAC (Version 487 and up)
  • HACD-DPQ Card with DeviceNet
  • PLC or Industrial PC with a DeviceNet Master
  • Experience with DeviceNet

Only people who are familiar with HACD-DPQ and DeviceNet should configure with the VT-HACD-DPQ-1-20-V0-1-0-0. All the cablings and the DeviceNet connections have to fulfill the requirements developed by ODVA (Open Device Net Vendor Association). The recommended parameters while operating the VT-HACD-DPQ-1-20-V0-1-0-0 are 2 bytes or 4 bytes and you can use a total of 16 parameters. The parameters are transferred in the internal data format of the VT-HACD-DPQ-1-20-V0-1-0-0. The internal data format has to be transferred to engineering units on the PLC side where the limits of the parameters are monitored. The values outside the pre-defined limits will result in the correct values on the VT-HACD-DPQ-1-20-V0-1-0-0.

You can calculate conversion using the following formulae:

PLC > HACD-DPQ:

(Engineering units – offset) * Scale = internal data format HACD-DPQ

 HACD-DPQ> PLC:

(Internal data format HACD-DPQ/ scale) + Offset = Engineering units

Engineering unit = Technical unit

The configuration of the address of the VT-HACD-DPQ-1-20-V0-1-0-0 is done with the help of software using the DeviceNet configuration screen. This address enable lies between and 63 default addresses. The rate with which data is transmitted and received over the DeviceNet is called Baudrate, and the VT-HACD-DPQ-1-20-V0-1-0-0 allows 125kBit, 250kBit and 500kBit, whereas, the default setting for the Baudrate is 125kBit.

  • VT HACD DPQ 1 20 V0 1 0 0
  • VT HACD-DPQ-1-20/V0/1-0-0
  • VT-HACD-DPQ-1-20/V0/1-0-0
  • VT-HACD-DPQ-1-2O/VO/1-O-O
  • VTHACDDPQ120V0100

VT-HACD-DPQ-1-20-V0-1-0-0 Technical Specifications

Product: VT-HACD
Controller Card Type: Digital Injection and Ejector Controller
Control Loops: Factory Assigned
Component Series: 20
Bus Interface: Without Option
Display: With Display
Device Type: Basic Device
Valve Output Stage: Without
