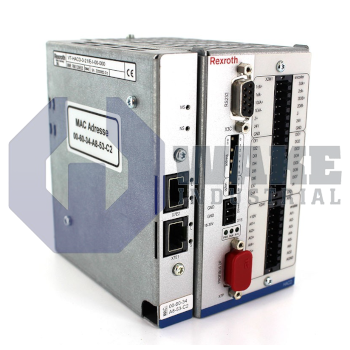

Rexroth, Indramat, Bosch Digital closed-loop control electronics in the VT-HACD Series. This Digital closed-loop control electronics features 3 Control Loops, Bus Interface of PROFIBUS DP V0, and Additional Functions of None.

VT-HACD-3-2X-P-I-00-000

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
Rexroth, Indramat, Bosch Digital closed-loop control electronics in the VT-HACD Series. This Digital closed-loop control electronics features 3 Control Loops, Bus Interface of PROFIBUS DP V0, and Additional Functions of None.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a VT-HACD-3-2X-P-I-00-000 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The VT-HACD-3-2X-P-I-00-000 complies with the EMC Directives 2004/108/EC. It is designed for mounting on 35-mm mounting rails. It has a micro-controller that monitors the arithmetic operations, makes adjustments and implements the closed control loops. The data for parameters, command values the configuration are stored in a non-volatile flash memory.There are several switches that are required for operating, maintaining and setting the VT-HACD-3-2X-P-I-00-000. For the diagnostics and the parameterization, as much as 32 electronics can be interconnected with the help of a local bus.

Following are the possible interfaces with the VT-HACD-3-2X-P-I-00-000:

  • Bus system (PROFIBUS DP/V0; Ethernet/IP or PROFINET RT)
  • Serial interface
  • Digital input/outputs
  • Analog signals

This control electronics has an input for two digital measuring systems SSI (Gray code or binary) and has one incremental position measuring system. Make sure you use only SSI encoder of the same type. The (PROFIBUS DP/V0; Ethernet/IP or PROFINET RT) features a +10 V reference voltage output and a serial interface RS232.

The 6 analog inputs of VT-HACD-3-2X-P-I-00-000 can be switched between ±10 V, 0…10 V, 0…20 mA and 4…20 mA.  The input resistance of the voltage input is 300 kOhm ±5 %. This control electronic has 3 analog outputs. The analog output can be switched between ±10 V, 0…10 V, 0…20 mA and 4…20 mA.

The VT-HACD-3-2X-P-I-00-000 has a total of 9 digital inputs and 8 digital outputs.  While integrating the VT-HACD-3-2X-P-I-00-000 into system, both the analog and digital inputs/outputs are available as PROFIBUS DP, PROFINET RT or Ethernet/IP to ensure higher-level control. It has several options of linking signals on the input/output side. The VT-HACD-3-2X-P-I-00-000 allows you to make arithmetic operations for 2 signals like additions, division, multiplication and subtraction.

  • VT HACD 3 2X P I 00 000
  • VT HACD-3-2X/P-I-00/000
  • VT-HACD-3-2X/P-I-00/000
  • VT-HACD-3-2X/P-I-OO/OOO
  • VTHACD32XPI00000

VT-HACD-3-2X-P-I-00-000 Technical Specifications

Product: VT-HACD
Controller Card Type: Digital closed-loop control electronics
Control Loops: 3
Component Series: 20 to 29
Bus Interface: PROFIBUS DP V0
Measuring System: Incremental/SSI
Additional Functions: None
Software Options: None
