Product Description:

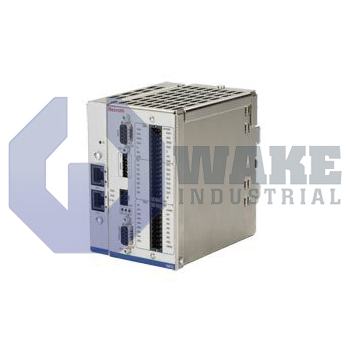

The VT-HACD-3-20-P-I-00-000 is a digital axis controller developed by Bosch Rexroth Indramat for the VT-HACD Digital Axis Controllers series. Mounted on a DIN rail inside machine cabinets, it coordinates hydraulic or electromechanical positioning by linking fieldbus commands with local sensor feedback. By running motion algorithms on its own hardware, the unit relieves the PLC of fast interpolation tasks and delivers deterministic positioning for presses, test rigs, and automated handling equipment. This arrangement helps the control system respond quickly to changing axis conditions without shifting every motion calculation to the higher-level controller.

At the heart of the module, a 32-bit PowerPC processor executes interpolation cycles while exchanging data through the fieldbus port, which supports PROFIBUS DP at selectable rates up to 12 MBaud. Six differential analog input channels accept ±10 V signals. Their smallest measurable change is 5 µA in current mode or 5 mV in voltage mode, allowing fine capture of pressure or position transducers. Three analog outputs are available for valve drive, and the controller also provides 9 digital inputs and 8 digital outputs for limit switches or interlocks. An encoder interface processes incremental or SSI feedback with edge rates up to 250 kHz, and the SSI path supports words of up to 28 bits for absolute linear scales.

Power distribution is referenced to a stable +10 V ±25 mV source that the card supplies for external potentiometers. The primary voltage channel, AO1, resolves commands in 1.25 mV steps and can maintain full-scale output through loads down to 500 Ω without distortion. Control electronics draw 200 mA from the 24 V cabinet supply, which helps keep demand on the control power rail modest in compact panels. Environmental protection is classified as IP20, so the unit must be installed inside a closed electrical enclosure to limit exposure to dust and moisture.
