VT-HACD-1-15-V0-1-0-0 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R900745354
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
17 Seconds
The Bosch Rexroth Indramat VT-HACD-1-15-V0-1-0-0 is part of the VT-HACD Digital Axis Controllers series and operates at a nominal supply voltage of 24 VDC. It features 6 analog inputs, 3 analog outputs, and a scan time of 2 milliseconds. The module has card dimensions of 100 by 160 mm and weighs 0.2 kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

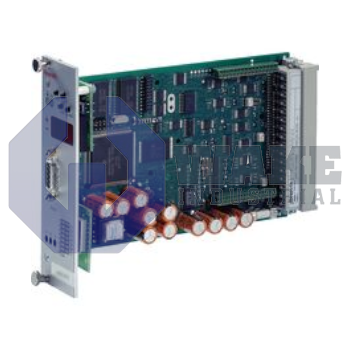

The VT-HACD-1-15-V0-1-0-0 is a plug-in card axis controller from Bosch Rexroth Indramat's VT-HACD Digital Axis Controllers series. It coordinates hydraulic or electric actuators by processing multiple feedback channels and generating proportional valve commands in distributed automation cells. Installed on a 100 × 160 mm Eurocard, the module occupies little cabinet space while adding closed-loop position, velocity, and pressure control to motion sequences driven by a supervisory PLC.
This controller operates from a nominal bus of 24 VDC, and it monitors up to 6 analog input channels with a leakage error of only 0.15 %, supporting stable sensor scaling. Current-mode inputs have 100 Ω of resistance and resolve down to 5 µA, so low-level transducer signals can be interpreted without external conditioning. Each program cycle completes within 2 ms, allowing tight loop gains even on fast hydraulic axes. Command information is sent through the first analog output, which can source up to 10 mA; this current margin is adequate for direct drive of most proportional valve coils without auxiliary amplifiers.
The digital section supplies field devices through outputs rated at 30 mA per channel, and onboard protection is provided by a time-delay fuse of 4 A to withstand inrush events without nuisance trips. Distributed installations are supported by a local bus that may run as far as 280 m from the master, maintaining deterministic telegram timing across large machinery. When the axis is inactive, the electronics draw only 250 mA, limiting heat rise inside sealed enclosures. Three analog outputs share a 14-bit resolution of 1.25 mV, giving fine command granularity for pressure or speed reference voltages. With a mass of 0.2 kg, the card is easy to handle, and its compact profile simplifies dense rack layouts where multiple motion channels are required.
Frequently Asked Questions about VT-HACD-1-15-V0-1-0-0:
Q: How many analog inputs does the VT-HACD-1-15-V0-1-0-0 axis controller have?
A: This controller features six analog inputs, supporting complex process control with multiple signal integrations.
Q: How many analog outputs are provided on the VT-HACD-1-15-V0-1-0-0?
A: There are three analog outputs provided by this device, enabling simultaneous control of multiple outputs.
Q: What is the analog input resistance for current on this model?
A: The analog input resistance for current is 100 Ω, which determines the load that can be applied to the input circuitry.
Q: What supply voltage is required to power the VT-HACD-1-15-V0-1-0-0 controller?
A: The VT-HACD-1-15-V0-1-0-0 requires a nominal supply voltage of 24 VDC for proper operation.
Q: What scan time does the VT-HACD-1-15-V0-1-0-0 offer for process operations?
A: It has a scan time of 2 ms, ensuring updates and processing are performed rapidly within automation systems.
