VT-HACD-1-10/V0/1-P-0 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R901047778
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat VT-HACD-1-10/V0/1-P-0 is part of the VT-HACD Digital Axis Controllers series and features 6 analog inputs and 9 digital inputs. It supports a PROFIBUS DPV0 bus interface, operates at a nominal supply voltage of 24 VDC, and connects with a 64-pole DIN 41612 connector. The controller card measures 100 mm by 160 mm and includes a display.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

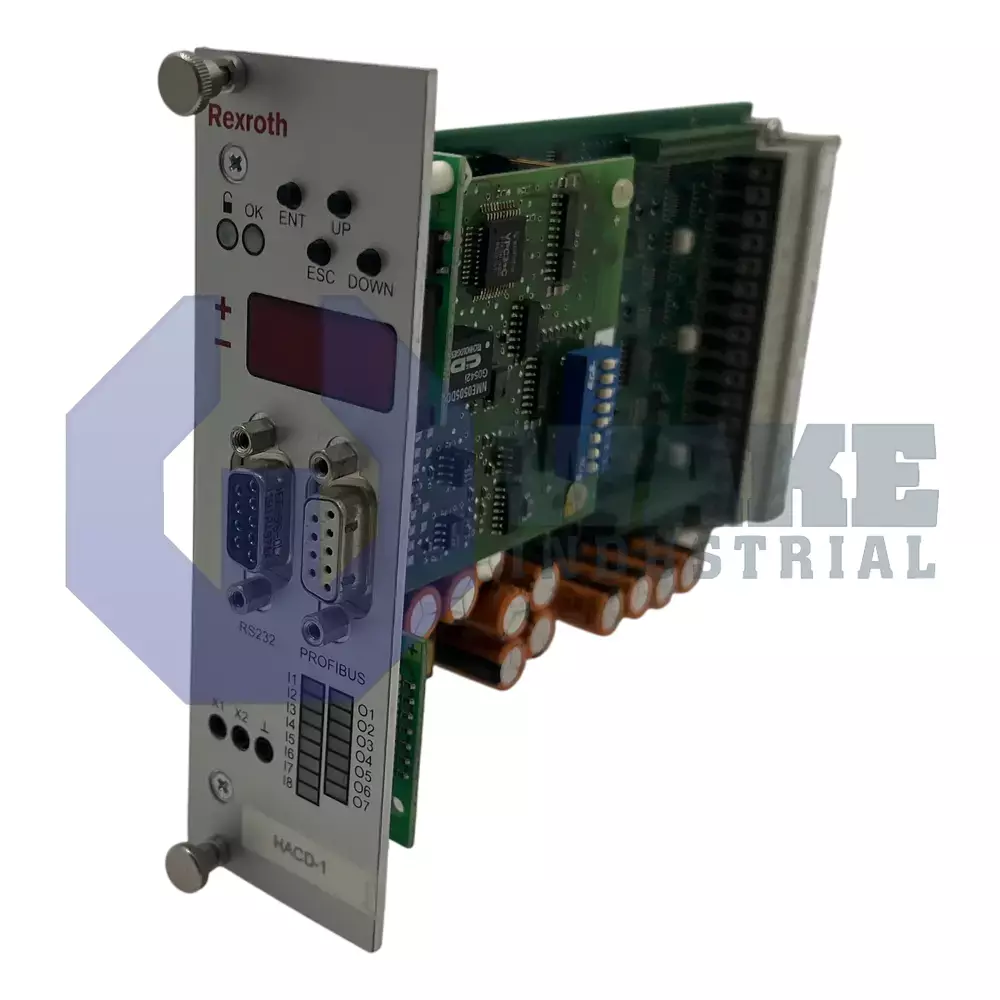

The VT-HACD-1-10/V0/1-P-0 is a plug-in digital axis controller produced by Bosch Rexroth Indramat within the VT-HACD Digital Axis Controllers series. Installed in a modular drive cabinet, the board coordinates motion by reading setpoints, monitoring feedback devices, and sending commands to proportional or servo valves. This allows a single axis to follow the programmed trajectory in an automated machine, and the plug-in format keeps the control function compact inside the rack.
It accepts a nominal supply of 24 VDC, a level common to control cabinets, and the rail is protected through a 4 A time-lag fuse that limits fault current. There are 6 analog inputs for sensors such as pressure or position transducers, and three analog outputs forward computed signals to external amplifiers. Logic switching is handled with 9 digital inputs for status bits and 8 digital outputs that can actuate relays or signal PLC flags. That mix of I/O lets the controller supervise command values, feedback signals, and machine interlocks on the same card. Field communication occurs over PROFIBUS DPV0, allowing the controller to exchange setpoints and diagnostics on a deterministic bus, while incremental encoder feedback is accepted up to 100 kHz so high-resolution position loops remain stable at fast speeds.
The card follows the Eurocard 100 mm × 160 mm format and plugs into a backplane through a 64-Pole DIN 41612 connector, which carries power, I/O, and fieldbus lines in a single edge interface. Idle power demand is limited to 250 mA, reducing heat load in densely populated racks. A two-line display is included on the front panel for parameter checks, and an RS485 SSI interface supports absolute encoders when required. The design omits a valve output stage, so drive signals must be routed to an external power amplifier. This keeps the controller focused on signal processing and communication while the external amplifier handles power delivery to the valve.
Frequently Asked Questions about VT-HACD-1-10/V0/1-P-0:
Q: How many analog inputs does the VT-HACD-1-10/V0/1-P-0 offer?
A: This controller has six analog input channels for signal acquisition.
Q: What type of bus interface is included on the VT-HACD-1-10/V0/1-P-0?
A: The VT-HACD-1-10/V0/1-P-0 features a PROFIBUS DPV0 bus interface for industrial communication.
Q: What is the connection type used on the VT-HACD-1-10/V0/1-P-0?
A: A 64-pole DIN 41612 (Design G) connector is used for device connections on this model.
Q: What is the required supply voltage for the VT-HACD-1-10/V0/1-P-0 controller?
A: The nominal supply voltage for this device is 24 VDC.
Q: What is the maximum frequency supported by the incremental encoder input on the VT-HACD-1-10/V0/1-P-0?
A: The incremental encoder input of this model supports up to 100 kHz.
