The VT 3006 S36 is an analog amplifier from the VT 3000 Analog Amplifiers series made by Bosch Rexroth Indramat. It operates at a nominal supply voltage of 24 VDC and supports a maximum solenoid current of 800 mA. The amplifier uses a 32-pin DIN 41612 Form D connector and features differential input impedance of 100 kΩ with full scale up to ±10 V.
Internal Product Review
The VT 3006 S36 is a well-engineered analog amplifier from the VT 3000 series with a 24 VDC nominal supply and a 32-pin DIN 41612 Form D connector. A ±10 V differential input with 100 kΩ impedance supports stable signal handling in proportional valve control circuits. An 800 mA maximum solenoid current and 170 Hz pulse frequency make this unit a strong choice for precise hydraulic actuation.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

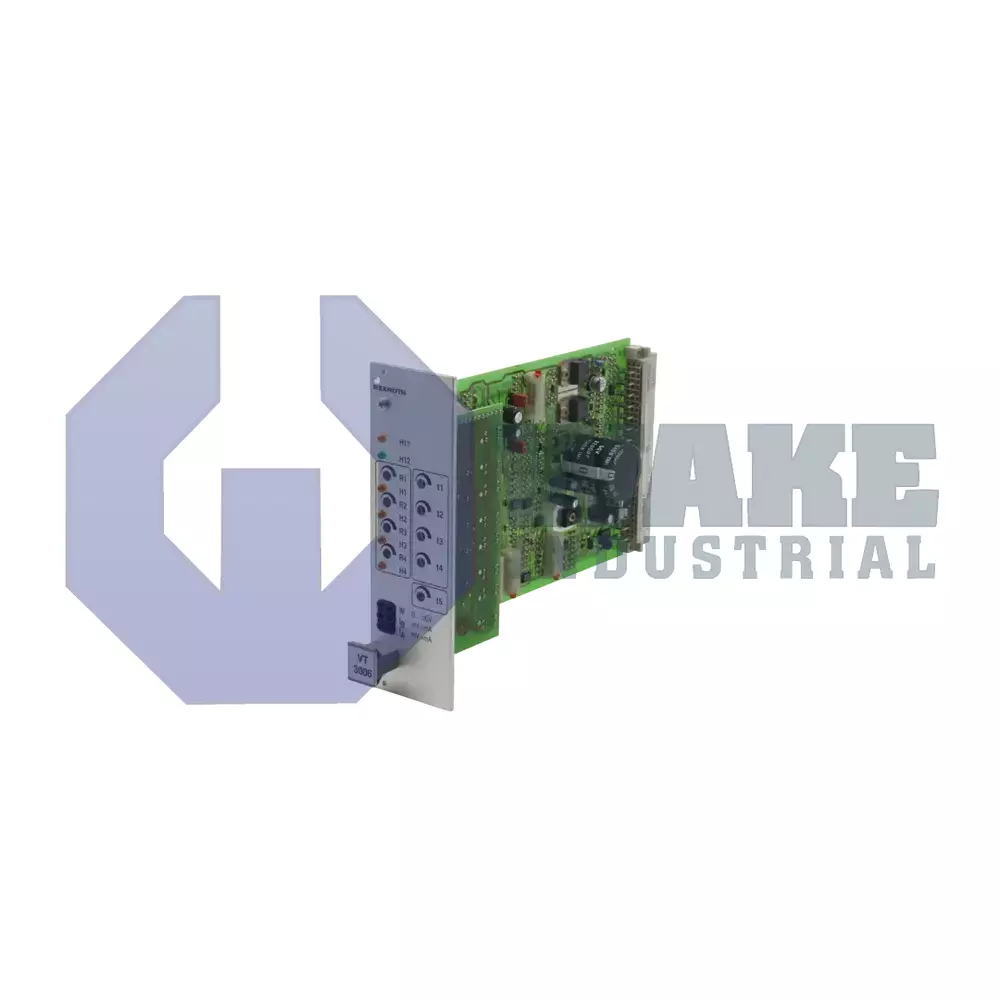

The VT 3006 S36 is an analog amplifier card manufactured by Bosch Rexroth Indramat for the VT 3000 Analog Amplifiers series. Installed in a control rack, the module conditions low-level command signals and supplies controlled current to proportional valve solenoids used in hydraulic motion axes and presses. By translating a voltage reference into a pulse-width-modulated current stream, the card forms the interface between PLC control voltage levels and the inductive load of the valve coils in industrial automation systems.
The card is powered by a nominal 24 V DC supply, with a permissible range between 22 V and 39 V that corresponds to the +60%/-25% tolerance. Internal circuit rails of ±9 V feed the error amplifiers and support a bias current of 20 mA for the solenoid driver stage. When a proportional valve demands full stroke, the board can supply 800 mA to the coil, provided the external supply is at least 28 V DC. Current is switched at 170 Hz, producing smooth magnetic force while keeping switching losses moderate. Upstream electronics encounter a 100 kΩ differential input impedance that limits loading and reduces the effects of ground-loop currents.
Command channels 1 through 4 accept ±9 V references, while channel 5 accepts either a ±6 V reference or a unipolar 6 V direct input, allowing the same card to support symmetric and asymmetric control schemes. The differential stage handles a full-scale span of ±10 V and clamps at that level to prevent overdrive. Field wiring is collected on a 32-pin DIN 41612 Form D header, so the board can be removed without disturbing the harness. A Eurocard footprint of 100 × 160 mm simplifies installation in standard subracks, while a 2.5 A time-delay fuse disconnects the supply during sustained faults. The power section is matched to a coil resistance of 19.5 Ω, allowing the driver to reach nominal force without exceeding its current limit.
Frequently Asked Questions about VT 3006 S36:
Q: What is the nominal supply voltage required for the VT 3006 S36 analog amplifier?
A: The nominal supply voltage for the VT 3006 S36 is 24 VDC, ensuring stable amplifier operation.
Q: What is the full scale input range for command inputs 1 to 4 on the VT 3006 S36?
A: Command inputs 1 through 4 on this model have a full scale of ±9 V, allowing for precise signal control in these channels.
Q: What is the maximum solenoid current output of the VT 3006 S36 amplifier?
A: The maximum allowable solenoid current for the VT 3006 S36 is 800 mA, supporting typical proportional valve operation.
Q: What type of connector does the VT 3006 S36 analog amplifier use?
A: This amplifier is equipped with a 32-pin DIN 41612 Form D connector for all electrical connections.
Q: What are the physical dimensions of the VT 3006 S36 amplifier card?
A: The card measures 100 x 160 mm, making it compatible with standard Eurocard mounting systems.
