Product Description:

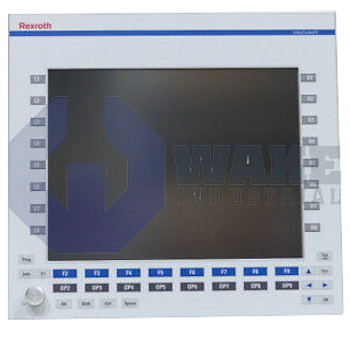

The VDP40.3DGN-D1-NN-NN operator terminal is produced by Bosch Rexroth Indramat within the VDP IndraControl Panels series. It is a panel-mount human-machine interface that links drive controllers, PLCs, and sensors so that operators can issue commands, view status messages, and adjust parameters directly at the machine. By combining a sizable screen with direct touch input, the unit simplifies interaction in assembly lines, packaging systems, and other automated cells where compact visualization and control are required.

Its display measures 17 in (432 mm), giving space for complex process graphics. A native resolution of 1280 × 1024 pixels keeps icons legible, and the panel renders up to 16 million colors so status shades remain distinct. The TFT screen offers wide viewing angles. Because the surface is designed for Touch Control, operators can trigger functions without external keys. The housing front carries IP65 protection, blocking dust and water jets, and it is finished in light gray (RAL 7035) to match standard cabinet doors. A bezel-mounted USB port handles recipe transfers or maintenance logs. Width is 407 mm and height is 370 mm.

For cabinet integration, the panel draws its logic power from a 24 VDC supply and the internal circuits limit steady consumption to 35 W, translating to a maximum line current of 2 A during startup surges. Communication with the automation system is handled through the CDI interface, allowing combined video, touch, and USB signals to be routed over a single cable to the controller. The unit projects only 41 mm behind the mounting plane, so it clears shallow doors and swing arms, and installation forces remain low because the assembly weighs just 5.8 kg. Its shallow body helps it fit cabinet doors and pendant supports where rear clearance is limited.
