Product Description:

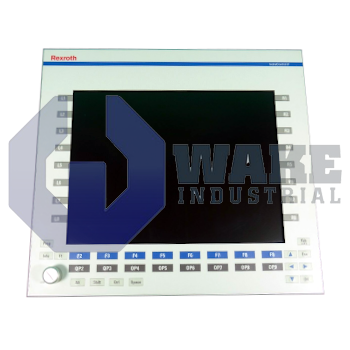

The VDP40.3BIN-D2-NN-NN is an operator terminal produced by Bosch Rexroth Indramat within the VDP IndraControl Panels series. Designed as a front-end human-machine interface, it mounts on control cabinets to present process status and accept operator commands in automated cells. The unit combines a color display with a dedicated keypad cluster and forwards all inputs to the controller through a CDI serial channel. This supports supervision, parameter entry, and alarm acknowledgment on assembly lines, material-handling stations, and packaging equipment.

For visual feedback, the panel uses a 38.1 cm (15") active area that renders graphics at 1024 × 768 pixels, so standard SCADA pages fit without scaling. The screen can display up to 16 million colors, allowing clear differentiation of status icons, trend lines, and alarm palettes. Because it uses TFT technology, the viewing angle remains stable and response times stay suitable for motion-tracking displays. Operators interact through foil, function, and machine keys, and 14 additional soft keys sit below the screen for contextual tasks. A sealed front rated IP65 prevents dust ingress and water jets from reaching the keypad overlay, permitting installation on machining centers or washdown conveyors without extra enclosures.

Beneath the bezel, the electronics draw a nominal 24 V DC supply from the control cabinet and typically consume 35 W, so the power budget of a compact PLC panel feed is sufficient. The rear housing carries an IP20 rating because it is installed inside the cabinet where accidental contact is limited. Mechanical durability suits plant-floor conditions, and the assembly tolerates shocks up to 15 g and continuous vibration of 1 g without display flicker or key bounce. Overall mass is 5.8 kg, which helps limit support load on cabinet doors or swing-arm installations. The keypad also includes 16 function keys and 16 machine keys for fixed shortcuts that complement the touch-free foil input method.
