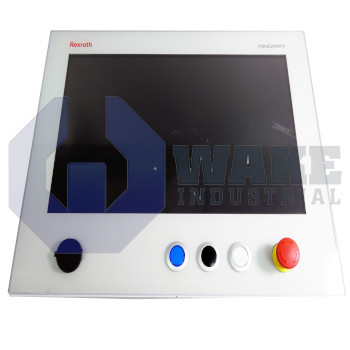

VDP15.3GAN-D1-NN-NN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911173177
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
16 Seconds
The Bosch Rexroth Indramat VDP15.3GAN-D1-NN-NN is part of the VDP IndraControl Panels series and features a multi-touch operation display with 16 million colors. It measures 275 mm in height, 422 mm in width, and 56.5 mm in length, weighs 4.8 kg, and is equipped with IP65 front protection and two USB ports. The panel operates on a 24 V DC power supply with a power consumption of 24 W, offering shock resistance up to 15 g and vibration resistance up to 1 g.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The VDP15.3GAN-D1-NN-NN operator panel is produced by Bosch Rexroth Indramat and belongs to the VDP IndraControl Panels series. Intended for front-door installation on cabinets or machine frames, the panel functions as a human-machine interface that brings real-time status data, parameter entry, and alarm management to machine operators. By combining display and touch input in a single enclosure, it replaces separate switches and indicator lamps while providing a clear access point for coordinated drives, PLCs, and safety controllers in automated assembly lines. Its layout supports direct interaction with process screens, alarm pages, and operating menus from the front of the machine.
The screen renders up to 16 million colors, so gradient graphics, trend charts, and high-resolution icons remain legible during diagnostics. User interaction relies on a Multi-Touch surface, enabling two-finger zoom and gesture-based navigation that replace mechanical keys. A laminated front plate carries an IP65 rating, which blocks dust ingress and low-pressure water jets when the panel is exposed on open machinery. Two rear USB Type-A ports permit data logging or service updates without opening the cabinet. Internal electronics draw power directly from a 24 V DC control supply, and the consumption is limited to 24 W, allowing the device to share standard 24 V power buses with sensors and I/O modules.
The housing spans 422 mm in width, 275 mm in height, and 56.5 mm in depth, so it fits into shallow console cutouts while still offering a sizeable viewing area. With a mass of 4.8 kg, the panel remains practical for installation on cabinet doors and machine frames. The rear side is protected to IP20, and the electronics can withstand up to 15 g of shock and 1 g of vibration during operation. These limits support reliable use on presses, gantry loaders, and other machinery subject to rapid axis movements.
Frequently Asked Questions about VDP15.3GAN-D1-NN-NN:
Q: How many display colors are available on the VDP15.3GAN-D1-NN-NN panel?
A: The VDP15.3GAN-D1-NN-NN supports up to 16 million display colors, enabling highly detailed and vibrant visuals.
Q: What type of touch operation does the VDP15.3GAN-D1-NN-NN feature?
A: This panel is equipped with a multi-touch operation interface for enhanced user interaction.
Q: What level of front protection does the VDP15.3GAN-D1-NN-NN provide?
A: The VDP15.3GAN-D1-NN-NN features IP65 front protection, providing strong resistance against dust and water on the display side.
Q: What are the power requirements for the VDP15.3GAN-D1-NN-NN control panel?
A: This model operates with a 24 V DC power supply and has a power consumption of 24 W.
Q: How many USB ports are included on the VDP15.3GAN-D1-NN-NN panel?
A: There are two USB ports available on the VDP15.3GAN-D1-NN-NN for convenient peripheral connectivity.
