Product Description

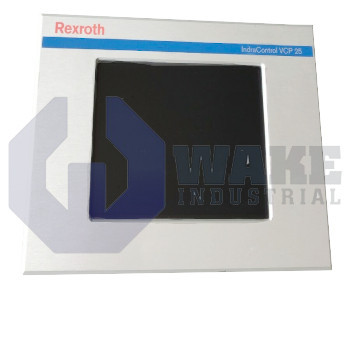

The Bosch Rexroth VCP25.2DVN-003-PB-NN-PW compact operator panel is mostly used to edit or control production data. This operator panel comes equipped with a STN-color touch display, which is graphic oriented, and has 128 colors. The screen’s resolution of 480 x 272 allows easy operation as well as configuration. The Rexroth VCP25.2DVN-003-PB-NN-PW comes with three interfaces, which include 2x USB-host (standard), 1x Eth ernet TCP/IP (standard), as well as Serial RS232/RS485 (optional). During the installation of the VCP25.2DVN-003-PB-NN-PW compact operator panel, it is recommended that the minimum clearance distance around the operating to be 1.181 inches (30 mm) to allow sufficient air circulation.

If the VCP25.2DVN-003-PB-NN-PW operator panel is installed horizontally, it is important to note that there can be extra sources of heat below the operating device which can lead to heat accumulation. Therefore, it is important to allow sufficient flow of air to prevent the VCP25.2DVN-003-PB-NN-PW compact operator panel from overheating. It is important for users to ensure that they comply with the recommended temperature range when operating the VCP25.2DVN-003-PB-NN-PW compact operator panel.

When installing the VCP25.2DVN-003-PB-NN-PW panel, it is important to make sure that the stated degree of protection is maintained, and that the seal is seats evenly on the installation surface, and that the grub screws of the mounting brackets are uniformly tightened. The VCP25.2DVN-003-PB-NN-PW operator panel can be quickly and easily mounted from its back plate. The panel’s supply voltage can be supplied via X1 connector. It is important to note that the VCP25.2DVN-003-PB-NN-PW compact operator panel is protected against reverse polarity. In the event of wrong polarity, the VCP25.2DVN-003-PB-NN-PW compact operator panel cannot operate. SELV (safety extra-low voltage) in accordance with the DIN EN 61131 should be used for supply voltage for safe operation.
