The Bosch Rexroth Indramat VCP35.2ECN-003-NN-NN-PW is part of the VCP IndraControl Terminals series. It features a TFT color display with a resolution of 640 x 480 pixels and a display area of 162 by 215 millimeters. The terminal offers an application memory of 3 MB, a supply voltage range of 18 to 30 VDC, and an IP65 front protection rating.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

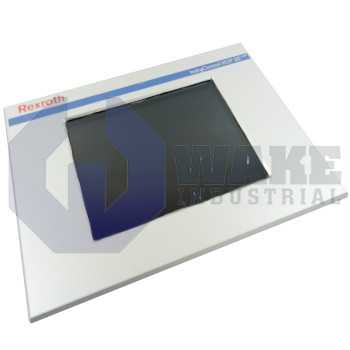

The VCP35.2ECN-003-NN-NN-PW operator terminal is produced by Bosch Rexroth Indramat for the VCP IndraControl Terminals series. It combines a color TFT display with a touch interface, giving machine builders a compact HMI for visualization and direct command entry in automated lines. Mounted in a control cabinet door or machine panel, the unit presents drive status, alarm messages, and recipe data without the need for an external computer. Its panel-mounted format keeps the interface close to the controlled process instead of placing control access in a separate enclosure. This arrangement lets one screen handle routine monitoring and local input at the machine.
The active viewing zone measures 162 x 215 mm, and the TFT panel renders graphics at 640 x 480 pixels for clear trending, menus, and diagnostics. The display area supports readable page layouts with dedicated regions for process values, alarms, and navigation buttons. An Analog Resistive (4-Wire) touch layer registers input through standard industrial gloves, which is helpful where physical keys are not practical. The front of the terminal is rated IP65 against dust and low-pressure water, while the rear electronics side is rated IP20 for protected cabinet installation. The bezel is only 5 mm thick, and the overall front panel size fits common cutouts in machine doors. A 3 MB application memory stores runtime pages and bitmap resources locally, reducing dependence on external storage media.
The terminal operates from a nominal bus of 24 VDC, with functional limits between 18 V and 30 V; residual ripple on that supply can reach 10 percent without affecting logic integrity. Power consumption peaks at 19.2 W, so the unit can be supplied from a modest low-voltage branch in the control cabinet. This electrical arrangement suits systems that already distribute standard control power to drives, I/O, and panel devices. Integrated reverse-polarity protection guards the power stage against wiring errors. Convection inside the cabinet keeps components within temperature limits, so no separate fan is required for the terminal itself. The allowable input range also helps the HMI remain stable when cabinet power varies slightly during normal machine operation.
Frequently Asked Questions about VCP35.2ECN-003-NN-NN-PW:
Q: How much application memory does the VCP35.2ECN-003-NN-NN-PW terminal offer?
A: The panel has an application memory capacity of 3 MB, allowing for storage of user programs and interface data.
Q: What is the display resolution and type of the VCP35.2ECN-003-NN-NN-PW terminal?
A: This model features a 640 x 480 pixel TFT color display for clear and vivid visual output.
Q: What is the required nominal supply voltage for the VCP35.2ECN-003-NN-NN-PW terminal?
A: A 24 V DC nominal supply voltage is required for proper operation of this terminal.
Q: Does the VCP35.2ECN-003-NN-NN-PW terminal include reverse polarity protection?
A: The VCP35.2ECN-003-NN-NN-PW is equipped with integrated reverse polarity protection to safeguard against incorrect wiring.
Q: What are the front and rear protection ratings of the VCP35.2ECN-003-NN-NN-PW terminal?
A: Its front panel is rated IP65 for protection against dust and low-pressure water jets, while the rear is rated IP20.
