Product Description:

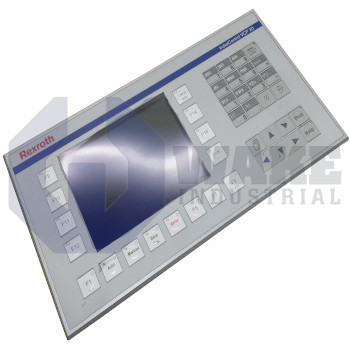

The VCP20.2DUN-003-PB-NN-PW operator terminal is manufactured by Bosch Rexroth Indramat within the VCP IndraControl Terminals series. It serves as a compact human-machine interface that mounts on control cabinets to display process data, accept user commands, and send those commands to a master PLC in industrial automation lines. Through its built-in processing core and communication ports, the panel reduces the load on higher-level controllers while presenting status information directly at the machine.

The device runs on a RISC ARM9 CPU clocked at 200 MHz, which executes visualization logic stored in 3 MByte of application memory. During runtime, it draws program code from a 16 MByte flash module and uses 32 MByte of SDRAM for dynamic data handling. The electronics require only 6 W from a 24 V DC supply, allowing the panel to share low-voltage power buses already present inside modern cabinets. Ethernet communication is available through a 1 x 10/100 Base-T interface for data exchange and network diagnostics. Two USB host ports allow memory sticks or input peripherals to be connected without opening the enclosure, so application files and recipe sets can be updated directly at the panel.

Its monochrome FSTN screen measures 86.4 × 115.2 mm and renders five gray shades, delivering process graphics that remain legible under ambient factory lighting. The LED backlight is rated for 30,000 h, which helps reduce maintenance intervals for machines that run around the clock. A 1 x PROFIBUS DP slave port links the terminal to decentralized I/O or legacy controllers without additional gateways. The front has an IP65 sealing rating that protects the keypad and display against dust and water jets, allowing installation on washdown equipment or dusty conveyors. The panel is suited to local machine operation where operators need direct access to alarms, status screens, and basic process commands.
