VCP11.2DWN-003-NN-NN-PW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911311509
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

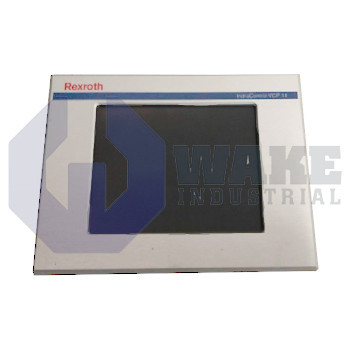

The Bosch Rexroth Indramat VCP11.2DWN-003-NN-NN-PW belongs to the VCP IndraControl Terminals series and features an FSTN display with a resolution of 320 x 240 pixels, displaying 5 shades of gray. The terminal offers front protection rated at IP65, rear protection at IP20, and operates at a supply voltage of 24 V DC. It uses an analog resistive 4-wire touch screen with an activation force of 15 grams and has a maximum power consumption of 0.35 A.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The VCP11.2DWN-003-NN-NN-PW is an operator terminal in the VCP IndraControl Terminals series manufactured by Bosch Rexroth Indramat. It serves as a compact human-machine interface that mounts flush on a control cabinet and provides process visualization and parameter entry for PLC-controlled machinery. The unit integrates a monochrome LCD, a resistive touch layer, and low-power electronics so it can relay status information and accept commands directly on the production floor, simplifying wiring between shop-floor equipment and supervisory controllers while maintaining environmental protection on the front face.
Electrical and visual parameters dictate installation requirements. The front of the terminal carries a protection rating of IP65, so dust and low-pressure jets do not reach the display or keypad when it is correctly gasketed. An FSTN liquid-crystal panel supplies high contrast, and its pixel matrix of 320 × 240 pixels supports clear depiction of alarms and menus. The device draws a nominal 24 V DC from the control supply but will continue to operate between 18 V and 30 V, with peak current limited to 0.35 A. At 96 × 130 × 5 mm, the front panel occupies minimal door space, and a 90-degree reading angle keeps data legible from the operator’s normal position.
Maintenance factors center on display longevity and mechanical fit. The cold-cathode backlight is rated for 30,000 h before its luminance falls to half, and the monochrome engine presents 5 shades of gray for straightforward trend or symbol rendering. A resistive, 4-wire touch screen responds when approximately 15 g of force is applied, allowing use with gloved fingers. Cabinet fabrication requires a cutout of 88 × 122 mm, while the rear housing remains within the lighter IP20 category to allow convection cooling without additional seals.
Frequently Asked Questions about VCP11.2DWN-003-NN-NN-PW:
Q: What type of display and color capability does the VCP11.2DWN-003-NN-NN-PW terminal have?
A: The VCP11.2DWN-003-NN-NN-PW is equipped with an FSTN display that supports 5 shades of gray for clear visual output.
Q: What is the front degree of protection for the VCP11.2DWN-003-NN-NN-PW?
A: This model features a front protection rating of IP65, ensuring strong resistance to dust and water spray.
Q: What is the display resolution of the VCP11.2DWN-003-NN-NN-PW terminal?
A: The display on this terminal delivers a resolution of 320 x 240 pixels for detailed graphics and text.
Q: What type of touchscreen does the VCP11.2DWN-003-NN-NN-PW use, and what is the activation force?
A: The analog resistive, 4-wire touchscreen on this unit requires only 15 g of activation force for user input.
Q: What is the supply voltage required for the VCP11.2DWN-003-NN-NN-PW terminal?
A: This device operates reliably with a supply voltage of 24 V DC for industrial applications.
