Product Description:

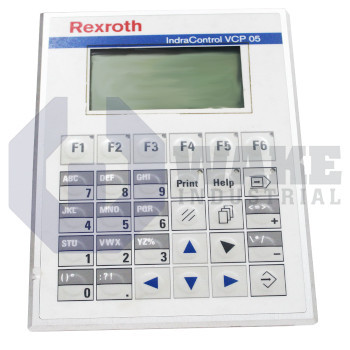

The VCP05.2DSN-003-SR-01-PW operator terminal is manufactured by Bosch Rexroth Indramat as part of the VCP IndraControl Terminals series. In an automated line, it serves as the local human-machine interface by providing graphical feedback and input commands directly at the machine. By integrating display electronics, a low-power processor, and standard communication ports, it removes the need for external PCs in distributed control architectures. Its slim front panel is intended for panel mounting, so status data and alarms remain visible even in confined control cabinets. This format is suited to status pages, alarm acknowledgment, and basic command entry where a compact local interface is preferred over a separate industrial computer.

At its core, a RISC ARM9 CPU clocked at 200 MHz executes the visualization runtime, ensuring quick menu navigation and screen refresh. The FSTN display renders process values at a resolution of 160 × 80 pixels, and a viewable area of 33.6 × 67.2 mm provides room for numeric data, trend curves, simple mimic diagrams, and icons shown in 5 shades of gray. Network traffic toward higher-level controllers is handled over a 10/100 Base-T port, while two independent RS-232 channels and an RS-485 bus support point-to-point links to drives or barcode readers. Power consumption stays low because the electronics draw only 6 W, minimizing cabinet heat and easing power-supply sizing.

Nominal operating power is provided at 24 V DC, matching the standard control voltage found in most machines. Once panel-mounted, the front face carries a protection rating of IP65, blocking dust and low-pressure water jets, whereas the rear section is limited to IP20 because it sits inside the enclosure. This arrangement keeps the protected side exposed to the operator while the less protected section remains inside the cabinet. The aluminum bezel measures 168 × 120 × 5 mm and seats in a 160 × 112 mm cutout secured by spring clamps. Application software and system libraries are stored in 16 MByte of flash memory, leaving room for software updates and recipe handling without external storage.
