VCP05.2DSN-003-NN-01-PW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911328208
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

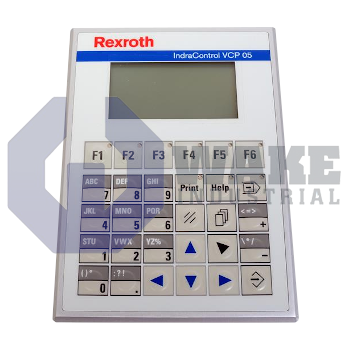

The Bosch Rexroth Indramat VCP05.2DSN-003-NN-01-PW is part of the VCP IndraControl Terminals series and weighs 500 grams. It features a 200 MHz RISC ARM9 CPU, 16 MB of flash memory, 32 MB of SDRAM, and a 6 W connected load with a supply voltage of 24 V DC. The terminal has an FSTN display with a resolution of 160 by 80 pixels, a display area of 33.6 by 67.2 mm, and offers front protection rated at IP65 and rear protection at IP20.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The VCP05.2DSN-003-NN-01-PW is a compact human-machine interface produced by Bosch Rexroth Indramat as part of the VCP IndraControl Terminals series. Designed for panel mounting on automated machinery, the unit provides local visualization and operator input while exchanging data with higher-level PLCs and motion drives. It operates from a 24 V DC control supply and integrates the display, processor, and communication interfaces in a single housing to simplify wiring inside sealed machine fronts. Its self-contained layout keeps the operator station compact and avoids the need for a separate industrial PC for basic machine interaction.
A RISC ARM9 processor running at 200 MHz handles program execution, while 32 MByte of SDRAM supports runtime variables and 16 MByte of Flash stores the application, recipes, and graphics. Screen content is rendered on an FSTN monochrome LCD with 5 gray levels. The active image measures 33.6 x 67.2 mm and carries a logical resolution of 160 x 80 px, which is suitable for numeric readouts, alarm text, and simple mimic diagrams. Network connectivity is provided by an 10/100 Base-T Ethernet controller for programming and peer communication. Two USB host ports permit connection of storage or input devices, and a rear service interface provides serial access for setup and maintenance.
Front sealing meets IP65, guarding the keypad and screen from airborne dust and water spray, whereas the rear casing is rated IP20 for enclosure mounting. The connected load of 6 W and a typical consumption of 0.25 A keep added heat low in densely packed cabinets. With a total mass of 500 g, the terminal can be supported by standard cutouts without additional framing. The low power demand and light weight make the unit suitable for compact control panels where space and thermal buildup must be managed carefully.
Frequently Asked Questions about VCP05.2DSN-003-NN-01-PW:
Q: What supply voltage is required for the VCP05.2DSN-003-NN-01-PW terminal?
A: The supply voltage required for the VCP05.2DSN-003-NN-01-PW terminal is 24 V DC.
Q: What type of display and resolution does the VCP05.2DSN-003-NN-01-PW have?
A: This terminal features an FSTN display with a resolution of 160 by 80 pixels.
Q: What are the IP protection ratings for the VCP05.2DSN-003-NN-01-PW?
A: The front of the device has IP65 protection, while the rear is protected to IP20 standards.
Q: How many USB ports are present on the VCP05.2DSN-003-NN-01-PW?
A: The VCP05.2DSN-003-NN-01-PW comes equipped with two USB ports for peripheral connections.
Q: What CPU type and clock speed does the VCP05.2DSN-003-NN-01-PW use?
A: It uses a RISC ARM9 CPU running at 200 MHz for its processing tasks.
