VCP05.2-BOF-PRRS-D0-P Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911172348
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat VCP05.2-BOF-PRRS-D0-P is part of the VCP IndraControl Terminals series and features a RISC ARM9 CPU with a clock frequency of 200 MHz, supported by 16 MByte of flash memory and 3 MByte application memory. The device has an FSTN display with a resolution of 160 by 80 pixels, a 33.6 x 67.2 mm display area, and offers IP65 front protection with a supply voltage of 24 V DC.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

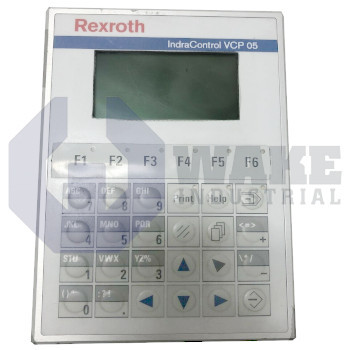

The VCP05.2-BOF-PRRS-D0-P is an operator terminal produced by Bosch Rexroth Indramat for the VCP IndraControl Terminals series. Designed for front-panel installation, the unit combines a graphical LCD with an embedded controller so operators can issue commands, adjust setpoints, and view alarms directly at the machine. By integrating the display, keys, and communication ports in one enclosure, it simplifies local interaction while leaving motion and logic processing to the main PLC or drive system.
It runs on a RISC ARM9 processor clocked at 200 MHz, a combination that executes visualization code and protocol stacks without external cooling. The device provides 16 MByte of Flash for system software and user pages, along with an additional 3 MByte of application memory for recipes or trend data. Graphics are shown at 160 x 80 px resolution on a transflective FSTN panel that measures 33.6 × 67.2 mm. A passive monochrome design offers five gray shades for icons and bar graphs. For factory networks, the integrated 10/100 Base-T port allows direct TCP/IP links to controllers or supervisory systems and supports project downloads as well as runtime data exchange.
Its front panel carries a sealing gasket that achieves IP65 protection, while the rear side is rated IP20 for cabinet interiors. The terminal operates from a 24 V DC supply and draws only 6 W, so heat rise inside the control box remains modest. The unit has two USB host ports for memory sticks or service adapters. Operator visibility is supported by a 90° reading angle and a backlight rated for 50,000 h half-life, which helps maintain screen readability during extended operation. The passive LCD presents static process screens without image retention while the low-power electronics maintain network connectivity.
Frequently Asked Questions about VCP05.2-BOF-PRRS-D0-P:
Q: How much application memory is available on the VCP05.2-BOF-PRRS-D0-P terminal?
A: The VCP05.2-BOF-PRRS-D0-P provides an application memory capacity of 3 MByte for program execution and data storage.
Q: What display resolution does the VCP05.2-BOF-PRRS-D0-P offer?
A: This terminal features an FSTN display with a resolution of 160 x 80 pixels, offering clear text and graphical output.
Q: How many USB host ports are included on the VCP05.2-BOF-PRRS-D0-P terminal?
A: The VCP05.2-BOF-PRRS-D0-P is equipped with two USB host ports, enabling connection of compatible USB devices.
Q: What front protection rating does the VCP05.2-BOF-PRRS-D0-P terminal provide?
A: An IP65 rating on the front ensures protection against dust and water, suitable for industrial environments.
Q: What supply voltage does the VCP05.2-BOF-PRRS-D0-P terminal require?
A: This model uses a 24 V DC supply voltage for its power requirements.
