Product Description:

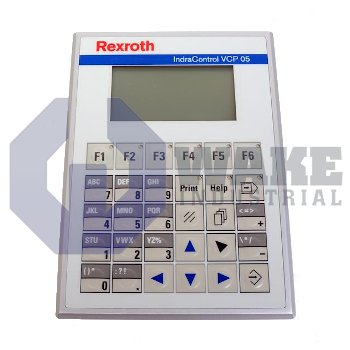

The VCP05.1BSN-DN-NN-PW is a compact operator terminal manufactured by Bosch Rexroth Indramat within the VCP IndraControl Terminals series. Designed for panel mounting in control cabinets, it combines an LCD module with LED backlight and a 30-key membrane keypad to present machine data and accept commands on assembly lines, packaging machines, and material-handling cells. Through its DeviceNet fieldbus port and an auxiliary RS-232C service interface, the unit provides the focal point for parameter entry, alarm acknowledgment, and step-through diagnostics without requiring a full-size industrial PC.

The terminal’s 10-bit controller runs at 10 MHz, and its application code is stored in 256 KByte Flash while variable data resides in 128 KByte static CMOS RAM. A monochrome screen shows up to 4 x 20 characters, which suits short recipe lists and status prompts, and operator interaction is handled by 30 tactile keys that can be labeled for machine functions. Communication with higher-level PLCs occurs over the DeviceNet interface, so I/O data, diagnostics, and parameter blocks move on the same deterministic network used by drives and remote sensors. These electronic resources allow the terminal to execute menu navigation, simple calculations, and message handling without external processing support.

Installation requires a 24 V logic rail, and the unit draws a maximum power of 7.2 W from the 24 V DC supply. The LCD backlight is specified for 100,000 h of service, and text remains legible within a 90° reading cone, suiting overhead or eye-level mounting. Front-panel dimensions are 168 mm high by 120 mm wide, and the cabinet cutout must match the 160 mm by 112 mm opening. Passive clamping tabs secure the housing from the rear, so no additional brackets are necessary. This layout suits compact enclosures and low-power distributed stations.
