Product Description:

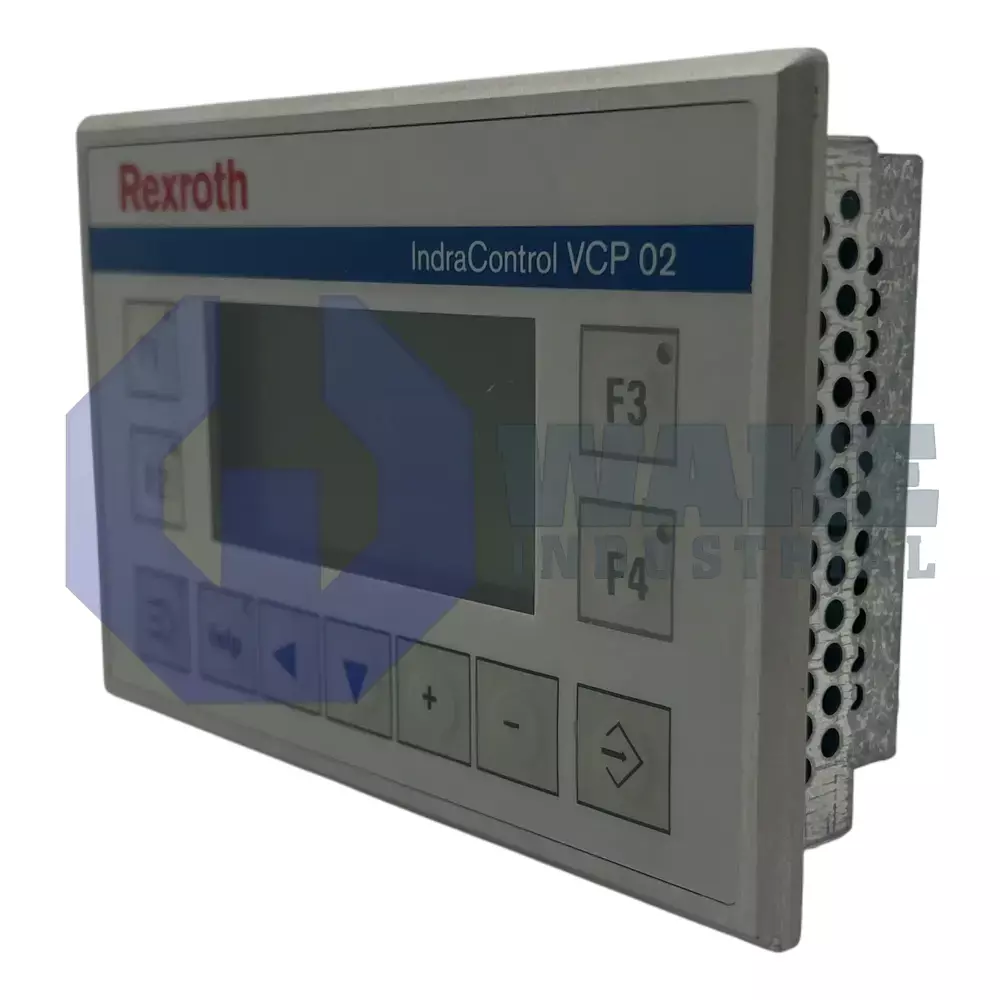

The operator terminal VCP02.2DRN-003-NN-NN-PW is manufactured by Bosch Rexroth Indramat as part of the VCP IndraControl Terminals series. It functions as a compact human-machine interface that lets users view process data and issue commands directly at the machine. Four tactile function keys, an integrated display, and rear panel connectors give the unit a self-contained role between controller hardware and supervisory systems on automated cells and small conveyor modules.

Control processing is handled by a RISC ARM9 CPU clocked at 200 MHz, allowing the terminal to refresh the monochrome user interface and manage communication traffic without delay. Application programs and embedded software are stored in 16 MB of flash, while 3 MB of user memory is reserved for machine-specific recipes and alarm logs. The passive FSTN display measures 3 in diagonally and renders data at 160 × 80 pixels across five gray scales, giving clear text and basic graphics under shop-floor lighting. A sealed polyester overlay and a front bezel rated at IP65 keep dust and low-pressure water jets from reaching the electronics, whereas the rear housing carries an IP20 rating that is suited for cabinet-protected wiring. One 10/100 Mbit/s Ethernet port supports PLC links, and idle draw is 1 W, which stays well below rated consumption.

Field connections are powered from a nominal 24 V DC supply, and total demand stays within 6 W even when the 2 USB host ports are active for data backup or barcode scanner support. The enclosure weighs only 0.5 kg, so it can be attached to swing arms or narrow doors without stressing hinges. Internally, four function keys are scanned by the processor at a constant rate for reliable tactile input, and the gray-scale FSTN screen maintains readability across the 0 °C to 50 °C ambient range typical of control cabinets.
