Product Description:

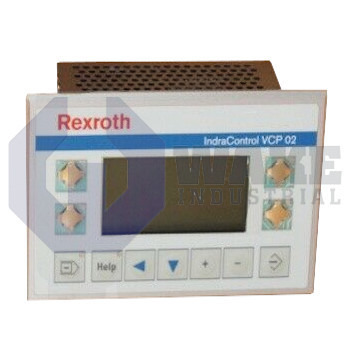

The VCP02.1BRN-RS-NN-PW is an operator terminal from Bosch Rexroth Indramat and belongs to the VCP IndraControl Terminals series. It is used as a compact human-machine interface, allowing operators to issue commands and view machine states through its front keypad and LCD screen while linking to higher-level controllers over serial channels. The product’s purpose in industrial automation is to provide local visualization and parameter entry close to the process equipment without occupying large panel space.

This terminal operates on a supply of 24 V DC and draws 0.3 A, resulting in a connected load of 7.2 W. These low power figures suit cabinet installations where available power is limited. The display is an LCD module with LED backlighting that shows text in a 4 x 20 characters layout, and the active viewing window measures 74 x 23 mm, giving operators enough room for clear status messages. A 90° reading angle maintains legibility when the panel is mounted below eye level. Eleven tactile keys allow numerical entry and soft-function selection, which gives direct access to common functions without requiring nested menus. The front face carries an IP65 rating, so dust ingress and low-pressure water jets will not affect the electronics when the unit is flush-mounted in a machine door. Electrical integration is handled through TTY 20 mA, RS-485, and RS-232-C links, and the bezel size of 96 x 144 x 3.5 mm lets the device fit the common DIN 43700 format.

Behind the bezel, the required panel cutout is 82 x 138 mm, and a mounting depth of 42 mm keeps the enclosure clear of neighboring components. The rear housing meets IP20, which is acceptable for protected cabinets where accidental contact must be avoided but water exposure is not expected. Its slim depth creates a lightweight assembly, and the unit weighs only 400 g, so it does not place excessive load on thin sheet-metal doors while still providing the rigidity needed for repeated key presses.
