VCP02.1BRN-IB-NN-PW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911307014
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat VCP02.1BRN-IB-NN-PW is part of the VCP IndraControl Terminals series and uses a Z84 CPU operating at a clock frequency of 10 MHz. It has a 74 x 23 mm LCD display with LED backlight, a resolution of 4 x 20 characters, and supports INTERBUS fieldbus interface. This terminal features IP65 front protection and IP20 rear protection, with a connected load of 7.2 W and a supply voltage of 24 V DC.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

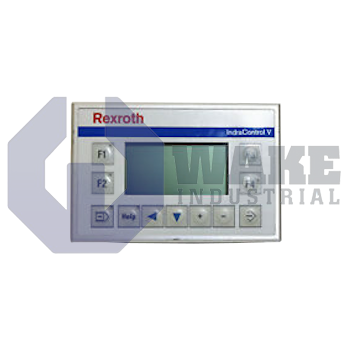

The VCP02.1BRN-IB-NN-PW operator terminal is produced by Bosch Rexroth Indramat within the VCP IndraControl Terminals series. The unit functions as a compact human-machine interface that lets operators issue commands, observe status information, and adjust parameters on PLC-controlled machinery. By integrating keypad input and an alphanumeric display into a panel-mounted enclosure, the terminal provides basic visualization and control functions without requiring a full industrial PC. It is typically installed on production equipment, packaging lines, and handling stations where simple text feedback and menu navigation are sufficient for real-time supervision.
Power is supplied at 24 V DC, and the connected load of 7.2 W keeps heat generation low so the terminal can run inside small enclosures with limited airflow. A Z84 microprocessor operating at 10 MHz performs the control logic and keypad scanning needed for timely operator feedback. Working memory amounts to 128 KByte of RAM for variable storage, while nonvolatile application data reside in 256 KByte of Flash, allowing user program retention when power is removed. The RS-232C (X3) serial interface supports parameter transfer or printer linking. Rear housing parts meet IP20, so the electronics must be installed inside a panel.
The front panel carries an LCD module that measures 74 × 23 mm and renders text in a 4 × 20 characters format with an LED backlight for clarity in dim areas. An INTERBUS fieldbus interface is available for cyclic data exchange with drives or PLCs, eliminating the need for additional gateway hardware. The aluminum faceplate achieves IP65 protection, so dust and low-pressure water jets cannot reach the keypad or screen. The stated LCD lifetime of 100000 h supports long-term readability during multi-shift operation.
Frequently Asked Questions about VCP02.1BRN-IB-NN-PW:
Q: What type of display does the VCP02.1BRN-IB-NN-PW use?
A: The VCP02.1BRN-IB-NN-PW features an LCD module with an LED backlight for clear visibility.
Q: What is the display resolution of the VCP02.1BRN-IB-NN-PW?
A: This terminal offers a display resolution of 4 lines by 20 characters for data readout.
Q: What level of front protection does the VCP02.1BRN-IB-NN-PW have?
A: The front of the device is rated at IP65, providing dust-tight and water jet resistance.
Q: Which fieldbus interface is supported by the VCP02.1BRN-IB-NN-PW?
A: It uses an INTERBUS fieldbus interface for system connectivity.
Q: What is the connected load of the VCP02.1BRN-IB-NN-PW terminal?
A: The connected load for this model is 7.2 W, ensuring energy-efficient operation.
