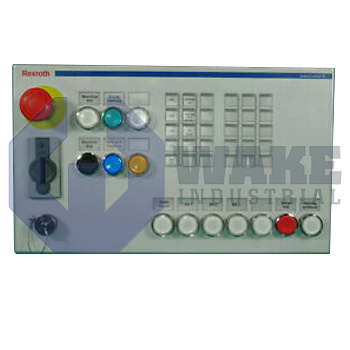

VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911172211
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN is part of the VAM Machine Operator Panels series and measures 407 by 169 by 102 millimeters. It offers thirty short-stroke function keys, one e-stop button, and features IP54 front protection. The unit supports Sercos III fieldbus communication and operates with a 24 V DC supply for both logic and I/O, weighing 1.4 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN operator panel is produced by Bosch Rexroth Indramat within the VAM Machine Operator Panels series. Designed for CNC and general motion systems, the unit provides local machine control and input functions through membrane keys, override wheels, and an emergency stop. By combining manual controls and a Sercos-based communication link, the panel serves as a human-machine interface that relays operator commands to the automation controller while offering direct safety interaction in machining centers and high-speed packaging lines.
Its casing measures 407 x 169 x 102 mm, so it fits pendant arms and front panels without protruding into the work envelope. Communication to the control system is carried over a single Sercos III interface, eliminating parallel wiring for discrete signals. All push-button and override circuits are powered from a dedicated 24 V DC I/O supply that can deliver up to 1.7 A, while the logic electronics draw 0.5 A from a matched line. The front matrix contains 30 short-stroke keys that issue binary commands such as axis select or coolant on, and rotary encoders furnish feed and spindle override adjustments. With a mass of 1.4 kg, the panel can be supported on light swing arms without exceeding typical load limits.
For plant environments subject to coolant splash or airborne dust, the front membrane has an IP54 protection rating. Mechanical resilience is rated for 15 g shock and 1 g vibration, allowing installation on moving gantries or press frames. A single authorization switch grants keyed access to setup mode, while additional hardware—one emergency stop, one on/off toggle, and individual feed and spindle override dials—completes the local control package. The internal electronics process local inputs without requiring active cooling.
Frequently Asked Questions about VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN:
Q: What level of environmental protection does the VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN panel have?
A: This panel provides IP54 front protection, making it resistant to dust and water spray in industrial environments.
Q: What fieldbus connectivity is available on the VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN operator panel?
A: The VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN features a single Sercos III fieldbus interface.
Q: How many function keys are included on the VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN panel?
A: This operator panel is equipped with 30 short-stroke function keys for customizable operation.
Q: What I/O supply voltage and maximum current does the VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN support?
A: The panel supports an I/O supply of 24 V DC with a maximum I/O current of 1.7 A.
Q: How many emergency stop buttons are provided on the VAM40.3-S3-NF-TA-TA-VD-MA-1616-NN?
A: This model includes a single emergency stop (E-stop) button for safety operations.
