VAM10.3-S3-NF-TA-TA-VD-1616-NN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911172210
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat VAM10.3-S3-NF-TA-TA-VD-1616-NN is part of the VAM Machine Operator Panels series and features a SERCOS III fieldbus interface as well as an Ethernet 100Base-TX interface with a transmission rate of 100 Mbit/s. The panel provides 16 digital inputs, 16 digital outputs, and has a fuse rating of 4 A. It includes 2 keypads with 15 keys each and has a protection rating of IP54 with integrated reverse voltage protection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

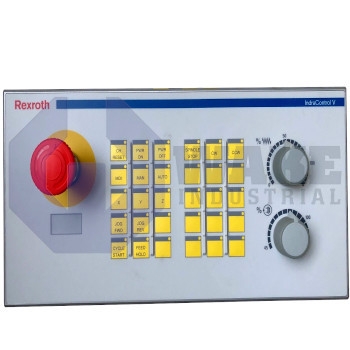

The VAM10.3-S3-NF-TA-TA-VD-1616-NN is an operator panel created by Bosch Rexroth Indramat for the VAM Machine Operator Panels series. It serves as the human-machine interface for CNC and general automation controllers, allowing operators to issue commands, monitor cycle data, and adjust feed or spindle parameters from a single front-end station. By integrating display electronics, membrane keys, and industrial networking inside one sealed housing, the unit simplifies cabinet wiring in production lines that use Indramat drive and motion controls.
The panel draws its logic and backlight power from a regulated 24 V DC input and is safeguarded by an internal 4 A fuse that disconnects the supply under fault current. An electrically isolated feed prevents ground loops between the panel and connected drives, while reverse-voltage hardware protects the circuitry if polarity is swapped. For real-time data exchange with PLCs or motion controllers, the unit features a SERCOS III fieldbus port that moves packets over an Ethernet 100Base-TX physical layer at up to 100 Mbit/s. Machine builders can mount the housing flush to enclosures thanks to a compact 53 mm depth, while the overall height is 169 mm and the width is 350 mm. Programmed override tables provide 24 feed stages and 16 spindle stages so operators can fine-tune motion without editing CNC code.
Front-panel interaction is handled by two matrices of 2 × 15 keys, each with tactile feedback suitable for gloved use. Sixteen discrete sensor channels are accepted through the embedded I/O, and the same count of 16 digital outputs supplies status lamps or interlocks; together, the 16 digital inputs and outputs let the panel function as a small-scale remote I/O node. The housing carries an IP54 rating that blocks dust ingress and water spray, extending service life on machining centers where cutting fluids are present. Mechanical switch banks select the override stages, and internal termination blocks keep all signal paths within the shielded enclosure to maintain electromagnetic compatibility.
Frequently Asked Questions about VAM10.3-S3-NF-TA-TA-VD-1616-NN:
Q: How many digital inputs and outputs are provided on the VAM10.3-S3-NF-TA-TA-VD-1616-NN panel?
A: The VAM10.3-S3-NF-TA-TA-VD-1616-NN features 16 digital inputs and 16 digital outputs for flexible machine connectivity.
Q: What type of fieldbus interface is available on the VAM10.3-S3-NF-TA-TA-VD-1616-NN?
A: This model supports SERCOS III as its fieldbus interface for reliable communication in automation systems.
Q: What level of protection does the VAM10.3-S3-NF-TA-TA-VD-1616-NN provide?
A: The VAM10.3-S3-NF-TA-TA-VD-1616-NN operator panel is rated IP54 for protection against dust and water spray.
Q: What supply voltage does the VAM10.3-S3-NF-TA-TA-VD-1616-NN require?
A: This operator panel is supplied with 24 V DC and features electrical isolation for added safety.
Q: How many keys are available for operator input on the VAM10.3-S3-NF-TA-TA-VD-1616-NN?
A: Two sets of keypads, each with 15 keys, are included for operator input on this panel.
