VAM04.1-NN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911171446
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

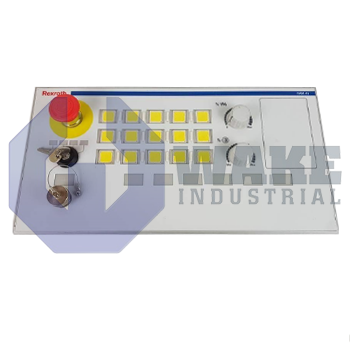

The Bosch Rexroth Indramat VAM04.1-NN is a machine control panel in the VAM Machine Operator Panels series. It measures 110 mm in height, 350 mm in width, and 29.3 mm in length, with a total weight of 0.3 kg. The panel features 7 function keys and 8 switch breakouts, and requires a cut-out size of 321.8 mm by 81.8 mm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The VAM04.1-NN operator panel is manufactured by Bosch Rexroth Indramat and belongs to the VAM Machine Operator Panels series. Designed for machine-level control, the panel provides a fixed hardware interface that lets an automation controller receive human commands without relying on a touch screen. It consolidates essential pushbutton and key functions so production lines can start, stop, acknowledge faults, or initiate mode changes through direct contact inputs. By placing electromechanical controls in a sealed bezel, the unit supports rapid installation in cabinets or console doors while keeping wiring localized to the mounting site. This arrangement keeps frequently used commands in a fixed location, which supports consistent operation during routine machine use.
The front face spans a width of 350 mm, a height of 110 mm, and a shallow body length of 29.3 mm. These dimensions allow the unit to fit compact console layouts without taking up much internal enclosure space. At just 0.3 kg, the panel imposes minimal load on thin sheet-metal doors, so supplemental reinforcement is usually unnecessary. A row of function keys totals 7, giving the panel discrete inputs for context-sensitive operations such as recipe selection or alarm resets. Because the housing is narrow, internal cable harnesses can be routed around neighboring operator devices while preserving clear spacing between adjacent switches.
The mounting aperture for this model is standardized, requiring a cutout height of 81.8 mm and a cutout width of 321.8 mm. These values match the bezel gasket so compression remains even against the console surface after installation. Eight dedicated switch breakouts provide 8 positions for starter buttons, selector switches, or indicator lamps, which simplifies field customization without additional drilling. The device is classified as a Machine Control Panel, and its premapped contacts terminate on a rear connector strip for direct wiring to I/O cards. This layout keeps the control arrangement orderly and helps maintain enclosure sealing around the installed panel.
Frequently Asked Questions about VAM04.1-NN:
Q: How many function keys are available on the VAM04.1-NN panel?
A: The VAM04.1-NN operator panel is equipped with 7 function keys for controlling machine operations.
Q: How many switch breakouts does the VAM04.1-NN panel have?
A: This model features 8 switch breakouts, enabling multiple control points for machine operation.
Q: What is the cut-out height required for installing the VAM04.1-NN operator panel?
A: The VAM04.1-NN has a cut-out height of 81.8 mm for installation purposes.
Q: What is the panel width of the VAM04.1-NN operator panel?
A: The width of the VAM04.1-NN machine control panel is 350 mm.
Q: What is the length of the VAM04.1-NN machine control panel?
A: The panel has a length (depth) of 29.3 mm, making it suitable for shallow enclosures.
