TVD 1.3-08-03 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911268887
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
1 Seconds
The Bosch Rexroth Indramat TVD 1.3-08-03 is a power supply module in the TVD Power Supply Modules series and weighs 10.5 kilograms. It delivers a DC bus continuous power of 7.5 kW at a voltage of 320 V, with a peak DC bus power of 22.5 kW for short durations. The module features 24 V and 15 V output currents of 7.5 A and 2.5 A respectively, and maintains a maximum relative humidity of 95 percent with an IP10 protection rating.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

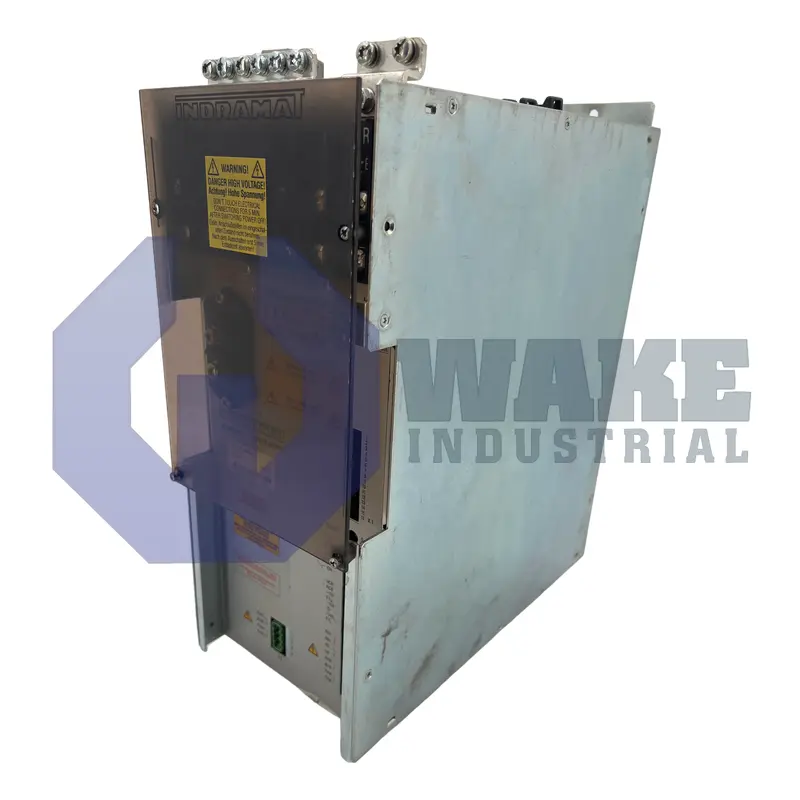

The TVD 1.3-08-03 is a power supply module manufactured by Bosch Rexroth Indramat within the TVD Power Supply Modules series. It converts three-phase mains energy into a stabilized internal DC bus for Indramat drive controllers, and it also furnishes multiple low-voltage rails that feed the controller electronics. In an automation cabinet, this module keeps the common DC link at its rated potential, accepts regenerated energy from connected servo axes, and dissipates surplus power through an integrated bleeder circuit. This arrangement lets several connected components share a common power source while supporting stable control operation throughout the drive system.
The DC link is held at 320 V, giving downstream inverters a fixed voltage reference for rapid torque commands. Continuous power that can be drawn from the bus is 7.5 kW, while short 0.3-second surges up to 22.5 kW cover acceleration peaks without a voltage dip. Mains loading is limited to 300 VA, so cabinet feeders can be sized accordingly. Internal conversion losses are specified at 75 W, and this heat must be removed by enclosure airflow to avoid thermal derating. The module also provides +15 V, -15 V, and +24 V auxiliary outputs, and each rail includes ripple limits of 0.1% or 2% to help prevent noise from propagating into encoder or control circuits.
When regenerated energy rises above the storage capacity of the DC link, a bleeder resistor absorbs it continuously up to 0.5 kW and in bursts up to 20 kW, protecting the bus from overvoltage. For every kilowatt drawn from the DC link, conversion waste is only 14 W/kW, which supports efficient system operation during sustained use. Operation is permitted at ambient temperatures as high as 55 °C with linear derating beyond 45 °C, and the IP10 housing requires installation inside a closed control cabinet. Maximum relative humidity of 95% non-condensing, a 30 kWs regenerated-energy limit, and a mass of 10.5 kg set the operating and installation limits for the module.
Frequently Asked Questions about TVD 1.3-08-03:
Q: What is the DC bus voltage specification for the TVD 1.3-08-03 module?
A: The TVD 1.3-08-03 has a DC bus voltage of 320 V.
Q: What is the continuous current available at the 24 V output of the TVD 1.3-08-03?
A: This model provides a 24 V output with a continuous current of 7.5 A.
Q: What is the bleeder peak power rating for the TVD 1.3-08-03 power supply?
A: It offers a bleeder peak power capacity of 20 kW.
Q: What is the maximum ambient temperature rating for the TVD 1.3-08-03 module?
A: The TVD 1.3-08-03 supports a maximum ambient temperature of 55 °C before derating.
Q: What protection category does the TVD 1.3-08-03 belong to?
A: This device is protected to the IP10 category, providing basic enclosure protection.
