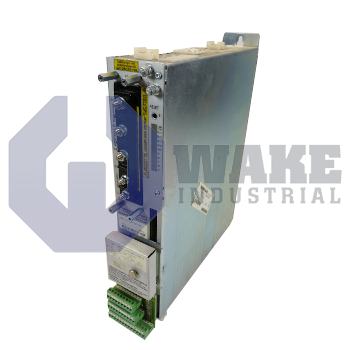

The Bosch Rexroth Indramat TVD 1.2-08 is a power supply module from the TVD Power Supply Modules series. It provides a DC bus continuous power of 7.5 kW at 320 VDC and can handle a bleeder peak power of 20 kW. The module weighs 10.5 kg and has dimensions of 390 mm in height, 150 mm in width, and 325 mm in depth.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The TVD 1.2-08 is a regulated DC power supply module manufactured by Bosch Rexroth Indramat and assigned to the TVD Power Supply Modules series. It links the facility mains to the shared DC link that feeds multiple digital drive controllers, converting incoming three-phase power into a constant high-voltage rail while also furnishing several auxiliary logic voltages. It is design version 2 within series 1 of the supply family. Within an Indramat motion cabinet, this module forms the power backbone that allows synchronous and asynchronous axes to operate in coordinated industrial automation tasks.
The DC bus produced by the module is stabilized at 320 VDC. Under continuous duty, the supply can deliver up to 7.5 kW to the drive string, and it is rated for a short-term burst capability of 22.5 kW to support acceleration demands. Excess regenerative energy is absorbed by the integrated bleeder resistor, and its transient absorption ceiling is 20 kW. The unit also provides auxiliary outputs for axis electronics, including +24 V, +15 V, and -15 V rails, so connected control sections can receive the low-voltage power they need from the same module. For its own logic, the assembly draws 300 VA of control power.
At full electrical output, the converter sheds 180 W of heat, so forced-air flow across the heatsink is recommended. The module may be operated in ambient temperatures up to 55 °C, which suits typical sealed control cabinets. Its steel housing stands 390 mm tall and occupies 150 mm of panel width with a depth of 325 mm, allowing placement beside other TVD units on a standard mounting rail. A shipping mass of 10.5 kg gives the module a solid installed feel while remaining manageable during cabinet assembly. The combination of regulated DC output, regenerative energy handling, and onboard auxiliary voltages makes it suitable for centralized supply duty in multi-axis drive systems.
Frequently Asked Questions about TVD 1.2-08:
Q: What is the continuous current output for the +24V line on the TVD 1.2-08 power supply?
A: The TVD 1.2-08 supplies a continuous +24V output at 7.5 A for connected devices.
Q: How much continuous DC bus power does the TVD 1.2-08 deliver?
A: This module can provide a continuous DC bus power of 7.5 kW during operation.
Q: What is the DC bus voltage rating for the Bosch Rexroth TVD 1.2-08?
A: The DC bus voltage for the TVD 1.2-08 is rated at 320 VDC.
Q: What is the bleeder peak power capability of the TVD 1.2-08?
A: The bleeder circuit on this module supports a peak power handling of up to 20 kW.
Q: What is the maximum feedback energy rating for the TVD 1.2-08 module?
A: The maximum feedback energy this model can handle is 30 kWs.
