TBM 1.2-40-W1/220V Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911230591
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

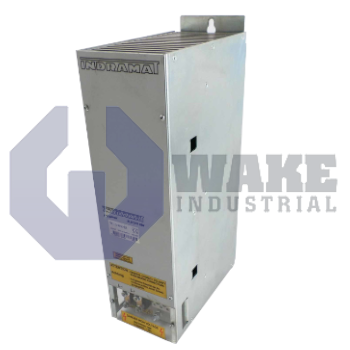

The Bosch Rexroth Indramat TBM 1.2-40-W1/220V is part of the TBM Bleeder Modules series and supports a peak power of 40 kW. It is designed with a built-in blower for internal air cooling and operates at 220 VAC blower voltage. The module has dimensions of 390 mm height, 208 mm width, and 105 mm depth.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The TBM 1.2-40-W1/220V bleeder module is manufactured by Bosch Rexroth Indramat as part of the TBM Bleeder Modules series. It is installed on the DC link of drive systems to dissipate surplus regenerative energy that appears when motors brake or loads overrun, preventing damaging voltage rises inside the power section. By converting excess electrical energy into heat through an internal resistor stack, the module protects frequency inverters and servo drives and supports stable operation in automated machinery such as presses, handling robots, and packaging lines.
This model can absorb up to 40 kW of peak energy, indicating how much transient power the resistor can safely convert without exceeding its temperature limit. A dedicated blower driven at 220 VAC moves cooling air across the elements so the resistor can return to its baseline temperature between duty cycles. Control wiring is accommodated by terminals that accept conductors up to 2.5 mm², giving adequate cross-section for low-current gate signals or thermal contacts. Thermal management is enhanced by internal air cooling with a built-in blower, which eliminates the need for separate cabinet fans. The enclosure depth is only 105 mm, allowing placement on shallow back panels while maintaining internal airflow channels.
The housing rises to 390 mm in height, providing enough vertical space for the resistor grid, blower, and temperature sensors without crowding adjacent components. A minimum clearance of 80 mm above and below the unit allows exhaust air to exit freely and helps prevent heat buildup in the control cabinet. Power cabling up to 6 mm² can be landed on the main terminals to carry the higher DC currents associated with braking events, and the overall width of 208 mm fits standard 200 mm rail sections for easier layout in multi-axis drive enclosures.
Frequently Asked Questions about TBM 1.2-40-W1/220V:
Q: What is the peak power rating for the TBM 1.2-40-W1/220V bleeder module?
A: The TBM 1.2-40-W1/220V bleeder module handles a peak power of 40 kW for managing excess energy dissipation efficiently.
Q: What type of cooling does the TBM 1.2-40-W1/220V utilize?
A: It uses a built-in blower for air cooling, providing internal thermal management for operation.
Q: What is the blower voltage for the TBM 1.2-40-W1/220V bleeder module?
A: The built-in blower of the TBM 1.2-40-W1/220V operates at 220 VAC.
Q: What is the maximum supported size for the control terminals on the TBM 1.2-40-W1/220V?
A: The maximum size for the control terminals on this module is 2.5 mm², supporting appropriate wiring connections.
Q: What is the minimum clearance required for installing the TBM 1.2-40-W1/220V?
A: The recommended minimum clearance for this model is 80 mm to ensure proper airflow and safe operation.
