SF-A4.0172.030-00.015
Wake Industrial LLC is not an authorized distributor of this product.
MPN: 1070000000
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The SF-A4.0172.030-00.015 is a linear guide rail manufactured by Bosch Rexroth Indramat. Part of the SF Servo Motors series, it features a guide width of 30 mm and a rail height of 15 mm. The rail is made of hardened, ground steel with corrosion-resistant surface treatment. It operates within a temperature range of -20 degrees C to +80 degrees C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

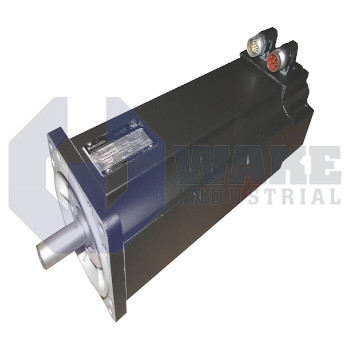

The SF-A4.0172.030-00.015 Servo motor manufactured by Bosch is a part of SF servo motor line. It has sinusoidal e.m.f. design that allows it to perform in a stable manner. Natural convection and radiation make the motor cool. This is effective to an upper limit of 100 degrees C, which prevents overheating. The SF-A4.0172.030-00.015 servo motor is equipped with a 142 mm mounting flange. The shaft has a dimension of 24 x 50 mm. The maximum length of the servo motor is 341 mm, excluding the holding brake. The shaft end follows the DIN 748 cylindrical standard and can be customized with keyway and feather key options. With the encoder included, the angular mass of the motor is 54 x 10-4 kgm^2. The motor has a mass of 25 kg excluding the holding brake. The standard speed of the motor is 3000 rpm. The SF-A4.0172.030-00.015 servo motor provides a standstill torque of 18 Nm torque. It runs at 200 min-1 at that time. The motor torque constant is 1.57 Nm/A when it operates at 40 degrees C. The rated current for the locked-rotor condition is 13 A, and the time delay constant is 30 s. The motor experiences a 100K elevation during operation. The holding brake option provides a holding torque of 18 Nm at 120 degrees C. It takes the basic current of 0.7 A from the system.
The SF-A4.0172.030-00.015 servo motor is shock-resistant. It is capable of withstanding up to 6 g of force in accordance with DIN IEC 68-2-27 standards. It produces a noise level of 58 dB(A) at 1.0 m, which is compliant with IEC 60034-T9. The insulation class is F (VDE 0530). The motor is thermally protected with thermistors that range from 5 degrees C to +155 degrees C.
Frequently Asked Questions about SF-A4.0172.030-00.015:
Q: What is the significance of the 142 mm flange size in the SF-A4.0172.030-00.015 Servo Motor?
A: The SF-A4.0172.030-00.015 Servo Motor has a 142 mm flange size, making it compatible with standard industrial mounting configurations. This ensures easy integration into automation systems.
Q: Why does the SF-A4.0172.030-00.015 Servo Motor have a rotational inertia of 54 x 10-4 kgxm^2?
A: The SF-A4.0172.030-00.015 Servo Motor has a rotational inertia of 54 x 10-4 kgxm^2, including the encoder, which impacts the motor's response time. This inertia helps provide smoother acceleration and deceleration in dynamic tasks.
Q: What is the advantage of the standstill torque of 18 Nm at 2000 min-1?
A: The SF-A4.0172.030-00.015 Servo Motor provides 18 Nm of standstill torque at 2000 rpm, allowing for strong starting torque in demanding applications. This ensures stable performance even at low speeds.
Q: How does the motor torque constant of 1.57 Nm/A improve the SF-A4.0172.030-00.015 Servo Motor's performance?
A: The SF-A4.0172.030-00.015 Servo Motor has a torque constant of 1.57 Nm/A at 40 degrees C, which ensures efficient conversion of current into torque. This allows precise control over motion in industrial automation tasks.
Q: Why is the rated current for locked-rotor condition 13 A in the SF-A4.0172.030-00.015 Servo Motor?
A: The SF-A4.0172.030-00.015 Servo Motor requires a rated current of 13 A in locked-rotor conditions to produce the required starting torque. This ensures stable operation when the motor is initially powered on.
