RZC01.1-6N-037-F-23
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911200641
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The RZC01.1-6N-037-F-23 Chemistry Module from Rexroth Indramat Bosch has a Rated Power Data of Frequency Converter of 30 kW. The Nominal Connecting Voltage of this unit is 3 x AC 400 V ± 15%, and the System of Protection is Prepared for IP23 cabinet Mounting.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

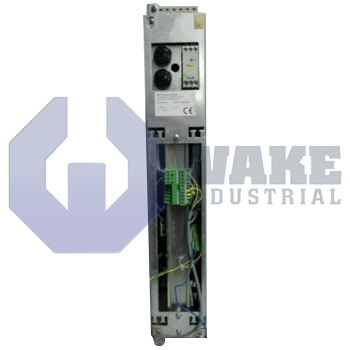

The RZC01.1-6N-037-F-23 from Bosch Rexroth Indramat is a three-phase chemistry module. This product is a line-1 module with a type-1 design. It is compatible with drive converters from the RD500 series, widely used in the process industry. It works with the RD500 series of drive converters, which are common in the process industry. This unit's rated power is 30 kilowatts, its rated current is 68 A, and its degree of protection is IP 23. It also has a standby power of 24 volts with filter current feedback as an added feature.
The RZC01.1-6N-037-F-23's connecting voltage is 400 Volts (with a tolerance of ±15 percent). It is not equipped with a NAMUR-terminal strip. The maximum output frequency of this device is 200 Hertz, and the pulse frequency is 8 Hertz. Its size class is C, and its modular dimension, like that of other Rexroth Indramat chemistry modules, is 22.5 mm. This RZC chemistry module has an environmental class of 3K3 as defined by DIN IEC 721-3-3, and its interference immunity meets EN 50082-2. The noise suppression level is A1, according to EN 55011. During operation, the ambient air temperature must be kept between 0 and 40 degrees Celsius and free of dust and corrosive chemicals. Furthermore, the RH of the RZC01.1-6N-037-F-23 must be less than 90%, and condensation is not allowed.
This RZC01.1-6N-037-F-23's required mounting screws are also as specified by the manufacturer. The metal housing of the RZC chemistry module must be flush-mounted to the cabinet or panel to ensure a good electrical connection. The temperature range of the RZC01.1-6N-037-F-23 when in storage is -25 to 70 degrees Celsius, and any airflow restriction must be prevented to maintain optimal thermal performance. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
