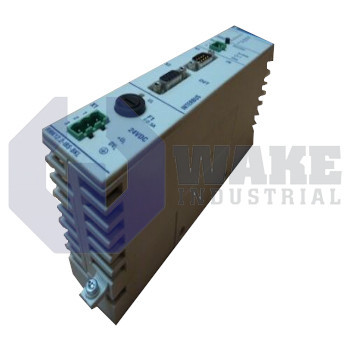

The Bosch Rexroth Indramat RMK12.2-IBS-BKL is part of the RECO Drive Modules series and operates as a remote bus slave on an INTERBUS-S communications bus. It features a 9-pin D-subminiature interface and can connect up to 15 I/O modules. The module is designed for mounting on a 35 mm top rail and has dimensions of 192 mm in height, 41.3 mm in width, and 81 mm in depth.
Internal Product Review
The RMK12.2-IBS-BKL is a RECO drive module configured as a remote bus slave with INTERBUS-S communication. A 9-pin D-subminiature interface and support for up to 15 I/O modules make integration straightforward in distributed control architectures. IP20 protection and 35 mm top rail mounting make this module an efficient choice for clean cabinet installations.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The RMK12.2-IBS-BKL is an interface module produced by Bosch Rexroth Indramat for the RECO Drive Modules series. Within distributed motion systems, it links localized I/O groups to higher-level controllers so drive axes and sensors can exchange status and command data in real time. Occupying a single rack slot, the unit forms the communication bridge that allows coordinated operation of multiple power stages and peripheral devices across an automated line. Its role in the control structure helps keep machine-side signals organized without requiring each device to be wired directly back to a central controller.
At the field layer, the module communicates over INTERBUS-S, a serial ring protocol that transports cyclic process data between the master and connected nodes. Electrical connection to the ring is handled by a 9-pin D-subminiature connector, allowing shielded cabling to be attached without screw terminal blocks. The housing stands 192 mm tall, extends 81 mm deep into the cabinet, and occupies only 41.3 mm of horizontal rail space. These dimensions let multiple drive cards share a compact enclosure while still providing finger-safe clearance. The design maintains signal integrity by separating the bus plug from the internal backplane so vibration cannot loosen contacts.
The enclosure is rated IP20, indicating touch-safe protection for live parts but no sealing against liquids, so it is intended for closed electrical panels with controlled airflow. It installs on a 35 mm Top Rail according to EN 50022, allowing rapid installation without additional brackets. Once clipped in place, the unit operates as a Remote Bus Slave, forwarding up to 15 add-on I/O modules through the RECO backplane to the INTERBUS master. This arrangement allows the exact mix of digital or analog channels to be placed near the machine site, which helps reduce long wiring runs between field devices and the main cabinet. The result is a cleaner distributed layout for systems that rely on coordinated data exchange between sensors, actuators, and drive hardware.
