Product Description

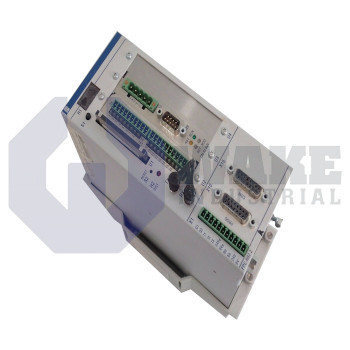

The PPC-R22.1 CNC module is enclosed in a double-wide housing. This Bosch Rexroth module requires two slots in the module rack for its mounting. It features a separate slot for fitting the serial COM interface. This interface has a setting of 9,600 Baud, 1 stop bit, 8 data bits, no parity and protocol XON/XOFF. The device can be operated using the MTC200 control unit firmware and additional hardware components. The buffer battery connection is present on top of the unit below a plastic cover. The completely discharged battery must be substituted with a new one when the power supply is turned on to avoid the loss of SRAM data.

The CNC module features an H2 distortion display for its SERCOS interface. The non-functioning X10 serial interface is electrically isolated. The product is capable of operating a maximum of 15 I/O modules. It uses the manufacturer’s local bus for communicating with the MTS-R01.2 PLC assembly. The device must not be used if there is extreme temperature fluctuation. It should always be operated by trained and qualified personal. The power supply has a cross-sectional area of 0.75 to 1.5mm2 for its connection cable. The CPU firmware component of the module is responsible for various tasks like tool management, block processing and communication with the PLC.

The module can be used as an integral part of rotary transfer machines. The product should not be used for an application that is not intended by the manufacturer. It may exhibit high discharge current and high voltage if it is improperly used. The electrical connection points of the unit’s components must not be touched when the device is turned on. The device should not be operated near radio and remote control equipment of high frequency. The APR firmware component of the module is associated with functions like the axis interpolation and SERCOS interface communication. The CNC module is available with a one-year warranty and can be shipped worldwide.

PPC-R22.1 Documents

  • PPC R22.1
  • PPCR22.1

PPC-R22.1 Technical Specifications

Permissible Range: 19.2 to 30 Volts DC
Power supply cable: 0.75 to 1.5 mm2
Processor: PowerPC 266 MHz
RAM: 32 MB
NVRAM: 128 KB
Display: 4-digit alphanumeric
RS-232: 2
Protection rating: IP20
Weight: 1.3 kilograms
Real-time clock: Yes

Frequently Asked Questions about PPC-R22.1


Q: What is the ambient temperature for operation?

A: The ambinet temperature range for operation is 0 to 45 degrees Celsius.

Q: What is the ambient temperature for storage?

A: The ambient temperature for storage is -25 to 70 degrees Celsius.

Q: What are the voltage supply specifications?

A: The control requires 24 Volts DC power supply with maximum 5% voltage ripple. The operating voltage range is 19.2 to 30 Volts DC.

Q: How can you identify the device?

A: A type plate is attached to the left side of the unit. You can refer to the information listed on this type plate.

Q: In what orientation should the control be installed?

A: Bosch has designed the control for vertical installation.

Internal Product Review

  • ‘‘The IP20-rated PPC-R22.1 is a versatile control for "SYNAX 200" and "VisualMotion" systems from Bosch Rexroth.’’
