PPC-R22.1N-T-V2-NN-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: 1070170286
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

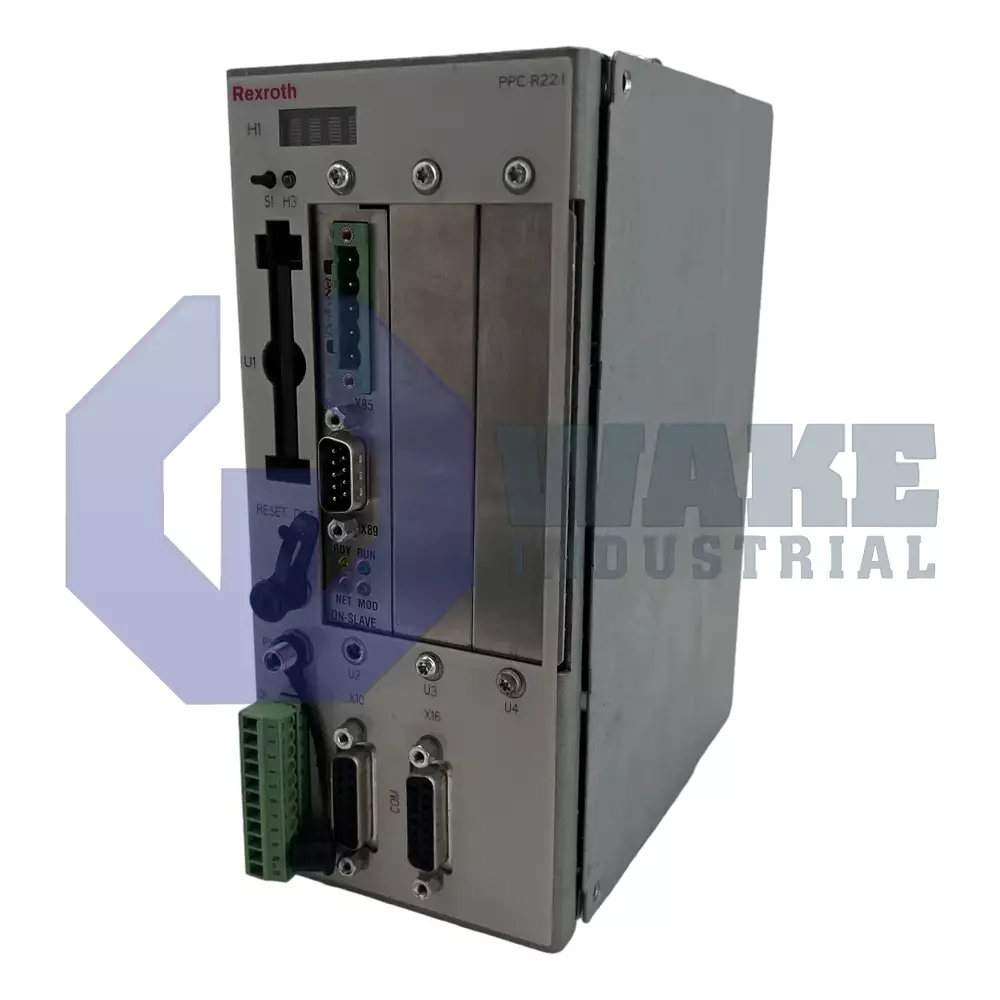

The Bosch Rexroth Indramat PPC-R22.1N-T-V2-NN-NN-FW is a control unit from the PPC Controllers series, supporting onboard Ethernet and a DeviceNet fieldbus slave interface. It has three digital inputs, two digital outputs, and features a 4-digit alphanumeric display with 32 MB flash memory. The unit mounts on a TS 35x27x15 DIN rail, operates with a 24 VDC nominal supply, and has a protection rating of IP20.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The PPC-R22.1N-T-V2-NN-NN-FW is a Bosch Rexroth Indramat control unit in the PPC Controllers series. It serves as the programmable processing core for distributed motion and I/O coordination in Sercos-based and fieldbus-linked machine cells, allowing drive axes, sensors, and higher-level PLCs to exchange deterministic data during industrial automation tasks. A 4-digit alphanumeric display presents status codes, and onboard Ethernet provides direct TCP/IP diagnostics without additional interface modules. This arrangement allows local status checking at the cabinet while still supporting network-based access to operating information.
This controller runs from a nominal supply of 24 VDC, and its internal circuitry draws up to 1.2 A during peak load conditions. Three digital inputs and two digital outputs share a common reference and can each source or sink 0.5 A for hard-wired machine signals. Flash storage rated at 32 MB retains user programs and operating data, and no removable memory expansion is fitted. The housing follows the RECO form factor and carries an IP20 rating, which protects against finger contact but requires enclosure mounting in dusty or wet areas. Power rail quality must remain within a ripple limit of 4 Vpp to help prevent data corruption during high-speed communication.
Sercos telegrams are exchanged at up to 16 MBaud, matching the timing demands of multi-axis motion loops, while the two RS-232/RS-485 serial ports operate at up to 115200 baud for legacy device integration. A DeviceNet DNS03 slave interface supports cyclic and acyclic messaging when the unit operates as a subordinate node. Installation is on a TS 35×27×15 DIN Rail, which allows quick removal from line-mounted terminal blocks. Despite its communication density, the module weighs only 1.3 kg, so additional mechanical bracing is not usually required in typical control cabinets.
Frequently Asked Questions about PPC-R22.1N-T-V2-NN-NN-FW:
Q: Does the PPC-R22.1N-T-V2-NN-NN-FW support Ethernet connections?
A: The PPC-R22.1N-T-V2-NN-NN-FW controller offers onboard Ethernet support for network connectivity.
Q: How many digital inputs and outputs are available on the PPC-R22.1N-T-V2-NN-NN-FW?
A: This controller provides three digital inputs and two digital outputs for interfacing with external devices.
Q: What type of display does the PPC-R22.1N-T-V2-NN-NN-FW feature?
A: A 4-digit alphanumeric display is included for monitoring and diagnostics.
Q: Which fieldbus interface is included in the PPC-R22.1N-T-V2-NN-NN-FW?
A: DeviceNet fieldbus slave interface, specifically DNS03, is integrated into this unit.
Q: What mounting style does the PPC-R22.1N-T-V2-NN-NN-FW controller use?
A: The control unit is designed for mounting on TS 35x27x15 DIN rails.
