Product Description:

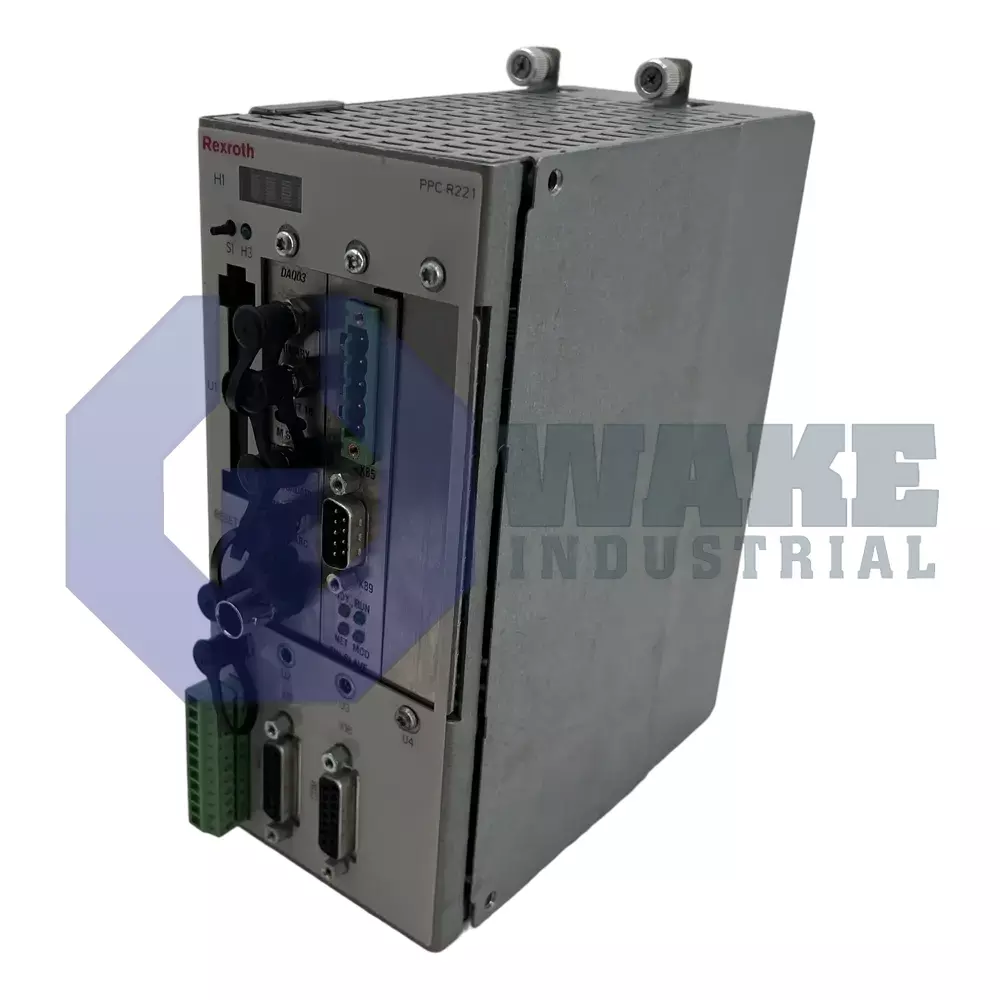

The PPC-R22.1N-T-Q2-V2-NN-FW is a control unit from Bosch Rexroth Indramat’s PPC Controllers series. Classified as a modular industrial controller, it mounts as a double-slot RECO unit and executes motion or process programs for multi-axis drives, I/O stations, and operator panels. By linking fieldbus, Ethernet, and serial channels, the device coordinates data exchange between higher-level PLCs and drive amplifiers, allowing the automation layer to issue deterministic commands while the controller handles local sequencing.

The unit operates from a nominal supply of 24 VDC, and at this voltage the internal bus, logic circuitry, and peripheral sensors draw up to 1.2 A. A nonvolatile store of 32 MB flash memory holds user programs and retained data, eliminating the need for separate memory expansion modules. Communication with neighboring stations is available through a DeviceNet DNS03 slave interface, two RS-232/RS-485 serial ports, and onboard Ethernet, so field devices can be addressed without extra gateway cards. Three unpopulated expansion slots allow additional option modules to be installed, and the diagnostic display is a four-digit alphanumeric panel that shows status codes during startup or runtime. The controller also provides three digital inputs and two digital outputs, and the unit uses design version 1 hardware for cabinet-based control applications.

The housing is rated IP20, which provides finger-safe protection but no sealing against liquids, so the unit is intended for installation inside a closed cabinet with forced ventilation. Each sourcing output can supply up to 0.5 A and responds within 400 µs, allowing it to pulse valves or relays without noticeable lag. A watchdog circuit monitors program execution and consumes only 150 mA; if operation stops unexpectedly, the watchdog disables the outputs. Total mass is 1.3 kg, which keeps the module light enough for DIN-rail mounting beside other PPC units while limiting panel load.
