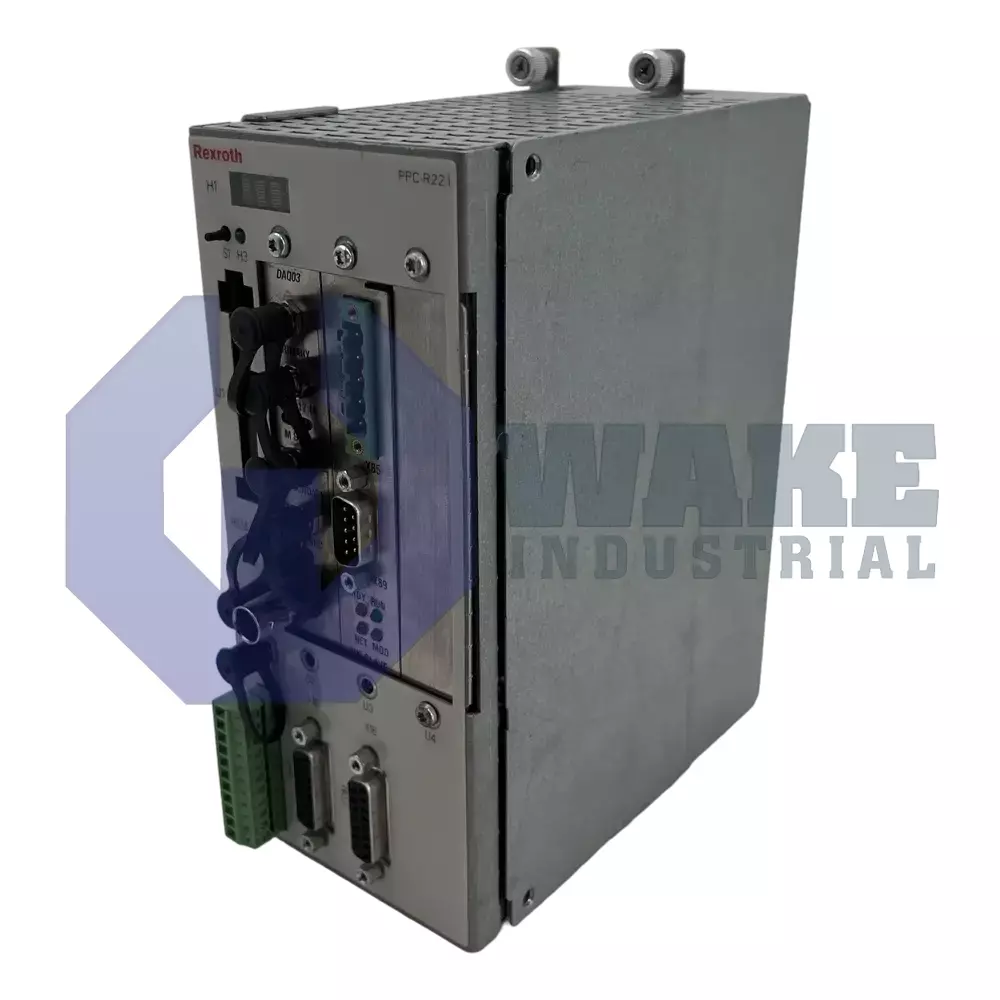

PPC-R22.1N-T-Q1-V1-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: 1070170297
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat PPC-R22.1N-T-Q1-V1-NN-FW is a control unit from the PPC Controllers series with a housing design based on the RECO unit and a protection rating of IP20. It features a nominal supply voltage of 24 VDC, a maximum current draw of 1.2 amps, and includes both Ethernet and Devicenet communication with 100 MBaud and 500 KBaud maximum baud rates respectively. The device weighs 1.3 kilograms and provides Ethernet/IP I/O capability of 64 bytes in and 64 bytes out, with memory expansion not equipped.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat manufactures the PPC-R22.1N-T-Q1-V1-NN-FW control unit for the PPC Controllers series. The module acts as the central processor in an automated cell, coordinating motion drives and field devices across multiple buses to streamline machine sequencing and diagnostic collection. It is design version 1 and uses Cross Communication over the DAQ03 interface, providing a compact platform for high-speed data exchange. That arrangement lets the controller manage sequencing tasks while exchanging status information with connected drive hardware in real time.
Power for the controller is supplied at 24 VDC, and its electronics draw up to 1.2 A during operation, so it can share the same low-voltage rail as sensors and safety relays. The built-in Ethernet port supports 100 MBaud over an RJ-45 connector for PLC messaging, while the DeviceNet channel reaches 500 KBaud. The non-expandable memory supports typical PLC logic, and additional data capture is directed to the DAQ03 card in slot U2. Cross Communication messaging passes through this card so separate PPC nodes can share global variables. The unit has an IP20 enclosure rating, so it must be installed inside a ventilated cabinet.
The DeviceNet interface connects through a 5-pin Open Style terminal block, while the Ethernet/IP channel transfers cyclic data blocks of 64 bytes in / 64 bytes out to attached drives. Both buses emerge from the controller's modular backplane in the RECO rack, and the housing is built as a RECO unit for straightforward removal without disturbing adjacent modules. This layout keeps network and I/O connections organized within the rack and supports orderly cable routing inside the cabinet. Slot U3 carries the DNM03 board to keep I/O traffic separate from motion commands. The overall assembly weighs 1.3 kg, which helps limit panel load in compact control cabinets.
Frequently Asked Questions about PPC-R22.1N-T-Q1-V1-NN-FW:
Q: Which design version applies to the PPC-R22.1N-T-Q1-V1-NN-FW controller?
A: Design Version 1 is used for the PPC-R22.1N-T-Q1-V1-NN-FW controller.
Q: What type of Ethernet port is present on the PPC-R22.1N-T-Q1-V1-NN-FW?
A: This controller uses RJ-45 for its Ethernet port connection.
Q: What is the Devicenet maximum baud rate on the PPC-R22.1N-T-Q1-V1-NN-FW?
A: The maximum baud rate for the Devicenet port is 500 KBaud.
Q: What is the nominal supply voltage for the PPC-R22.1N-T-Q1-V1-NN-FW controller?
A: The nominal supply voltage requirement for this unit is 24 VDC.
Q: What is the maximum current draw of the PPC-R22.1N-T-Q1-V1-NN-FW controller?
A: A maximum current draw of 1.2 A is specified for the PPC-R22.1N-T-Q1-V1-NN-FW.
