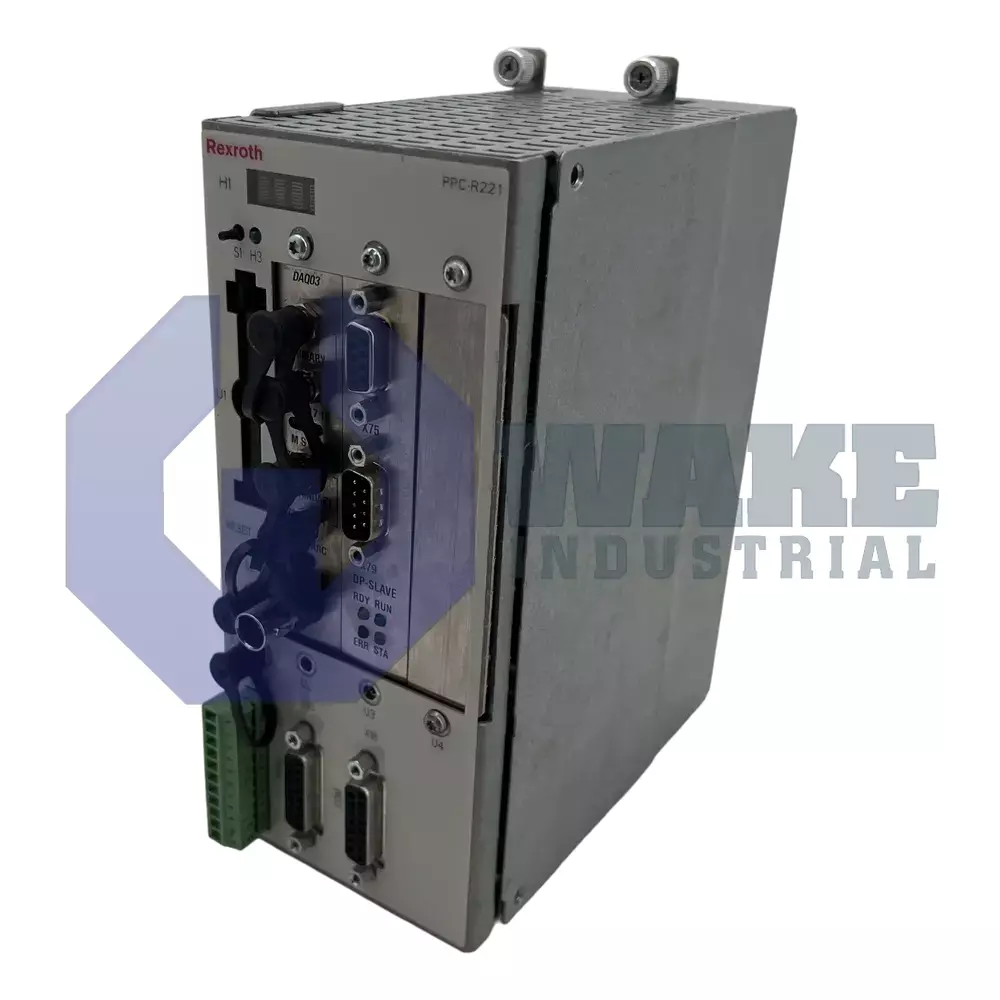

PPC-R22.1N-T-Q1-P1-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: 1070170296
The Bosch Rexroth Indramat PPC-R22.1N-T-Q1-P1-NN-FW is a control unit from the PPC Controllers series. It features a supply voltage of 24 VDC, a maximum current draw of 1.2 Amps, and a protection rating of IP20. The unit supports cross communication, DAQ03 communication, and is equipped with both Profibus and Sercos interfaces, as well as 32 MB of flash memory and three expansion slots.
Internal Product Review
The PPC-R22.1N-T-Q1-P1-NN-FW is a Bosch Rexroth Indramat control unit with IP20 protection and a RECO unit housing design. Cross communication via DAQ03 and Ethernet up to 100 MBaud support responsive integration in demanding automation architectures. A 24 VDC supply and 3 expansion slots make this controller an excellent choice for scalable industrial control.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The PPC-R22.1N-T-Q1-P1-NN-FW is a programmable control unit produced by Bosch Rexroth Indramat for the PPC Controllers series. Mounted alongside Rexroth drive modules, it executes motion sequences, fieldbus coordination, and diagnostic tasks that support industrial automation cells. The module houses its electronics in a compact RECO-style enclosure and mounts on a 24 VDC power rail inside a protected cabinet, where it serves as the central logic layer between higher-level PLCs and the Sercos, Profibus, and Ethernet communication networks of a machine.
Its primary power requirement is 24 VDC, and under peak load the unit draws up to 1.2 A, so the cabinet supply must deliver enough power for stable operation. A local flash store of 32 MB retains control programs and configuration data even when power is removed. For fieldbus duties, the integrated Profibus master negotiates traffic at up to 12 MBaud, while the optical Sercos interface exchanges drive telegrams at 16 MBaud to preserve deterministic cycle times. Internal measurement channels are supervised by the DAQ03 board, and its 5 V rail is limited to 700 mA while loads that exceed the 4 Vpp ripple limit are rejected to protect logic integrity.
For higher-level networks, an RJ45 connector supports 100 MBaud Ethernet and communicates through TCP port 5001, permitting cross-communication with engineering or SCADA hosts. Supplied as design version 1, the hardware offers 3 vacant expansion bays that accept future I/O or fieldbus cards without requiring changes to compiled projects. The controller carries an IP20 rating, so it must be installed in an enclosed panel where airflow keeps internal ripple within limits. With a mass of only 1.3 kg, it places minimal strain on DIN-rail hardware while still supporting a 40-drive capacity and the two serial links used in complex motion platforms.
