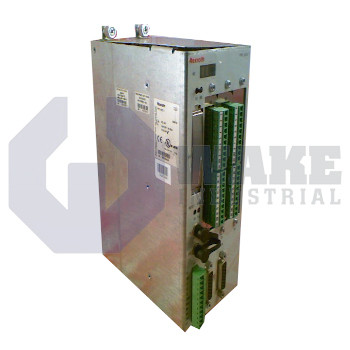

The Bosch Rexroth Indramat PPC-R22.1N-T-Q1-NN-NN-FW control unit is part of the PPC Controllers series and operates with a nominal supply voltage of 24 VDC. It features onboard Ethernet with 10/100 MBaud capability, two serial ports supporting RS-232/RS-422/RS-485 modes, and an IP20 protection rating. The unit has a maximum current consumption of 1.2 A and is equipped with 32 MB compact flash memory.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

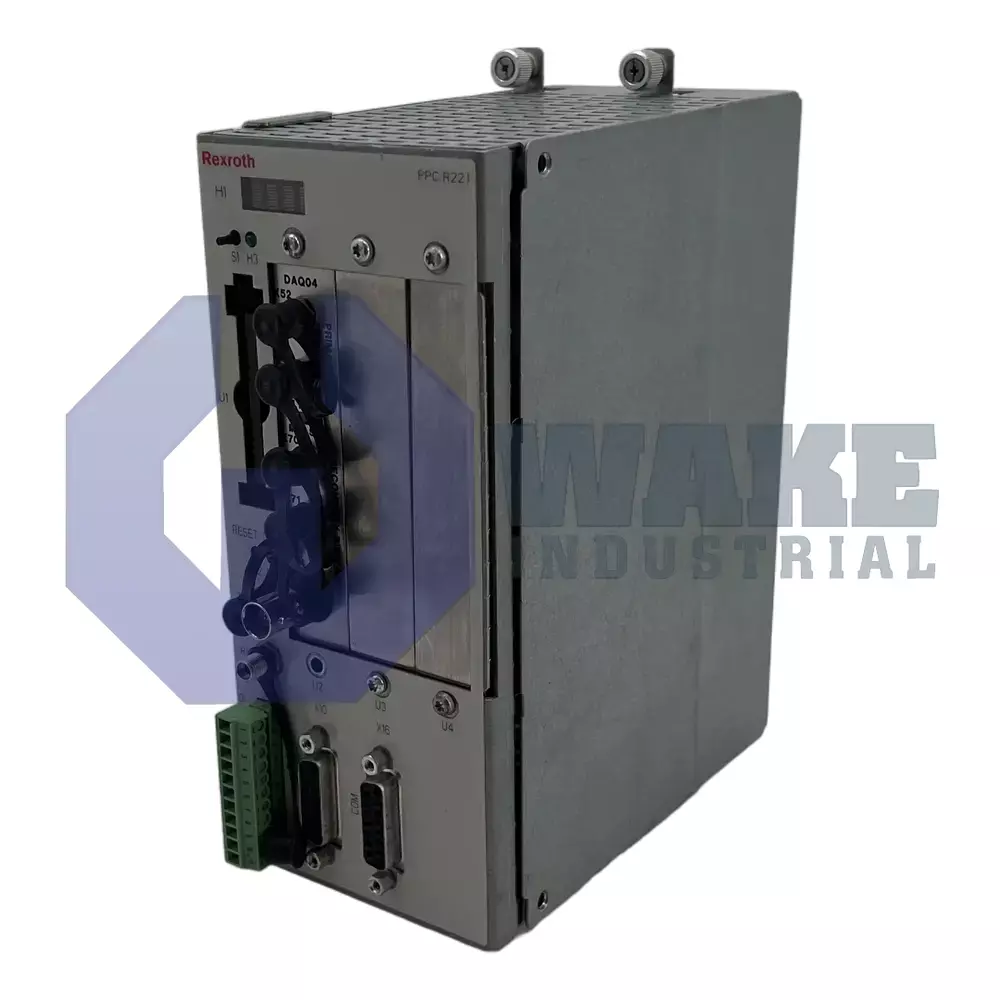

The PPC-R22.1N-T-Q1-NN-NN-FW is a Bosch Rexroth Indramat control unit in the PPC Controllers series. It acts as the motion and logic coordinator for servo drives and distributed I/O, exchanging real-time data through Sercos rings, onboard Ethernet, and dual serial channels for synchronized machine control. By combining cross communication with the factory-installed DAQ03 link ring module, the unit synchronizes axes, acquires process values, and forwards status information to supervisory controllers during operation.
The controller is powered from a nominal 24 VDC bus that may vary between 19.2 VDC and 30 VDC with a permitted ripple of 4 Vpp. At full load, it draws up to 1.2 A, while an additional 2.6 A rail supports stacked I/O modules. Each digital output can deliver 0.5 A and reaches its final state within 500 µs. Network traffic moves over an RJ-45 connector that supports 10/100 Mbaud Ethernet in full-duplex mode and uses port address 5001 for TCP services on the control network. Motion bus communication is handled by a Sercos interface that can be configured up to 16 Mbaud. The RECO housing design allows the unit to clip onto a backplane without tools, and design version 1 maintains compatibility with existing PPC backplanes. Supply-side diagnostic LEDs reveal link status, cross communication activity, and watchdog conditions for local status checks.
User interaction occurs through two serial ports that operate up to 115200 baud and can switch between RS-232, RS-422, or RS-485 modes for connection flexibility. Program and parameter storage resides on a 32 MB CompactFlash card, and no additional memory expansion is installed in the unit. The enclosure carries an IP20 rating, so it must be mounted in a protected cabinet where ambient temperature does not exceed 45 °C during operation. This cabinet-mounted arrangement helps protect the controller from accidental contact and exposure in open machine areas.
Frequently Asked Questions about PPC-R22.1N-T-Q1-NN-NN-FW:
Q: What is the nominal supply voltage required for the PPC-R22.1N-T-Q1-NN-NN-FW controller?
A: The PPC-R22.1N-T-Q1-NN-NN-FW operates with a nominal supply voltage of 24 VDC.
Q: What are the Ethernet capabilities of the PPC-R22.1N-T-Q1-NN-NN-FW?
A: The PPC-R22.1N-T-Q1-NN-NN-FW features onboard Ethernet operating at 10/100 MBaud full duplex.
Q: What kind of housing and protection rating does the PPC-R22.1N-T-Q1-NN-NN-FW provide?
A: This controller is designed in an RECO housing with an IP20 protection rating.
Q: How many serial ports and which modes are supported on the PPC-R22.1N-T-Q1-NN-NN-FW?
A: Up to two serial ports are available on the PPC-R22.1N-T-Q1-NN-NN-FW supporting RS-232, RS-422, and RS-485 modes.
Q: How much compact flash memory is available on the PPC-R22.1N-T-Q1-NN-NN-FW?
A: The PPC-R22.1N-T-Q1-NN-NN-FW is equipped with 32 MB of Compact Flash memory.
