PPC-R22.1N-T-Q1-L2-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911314861
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

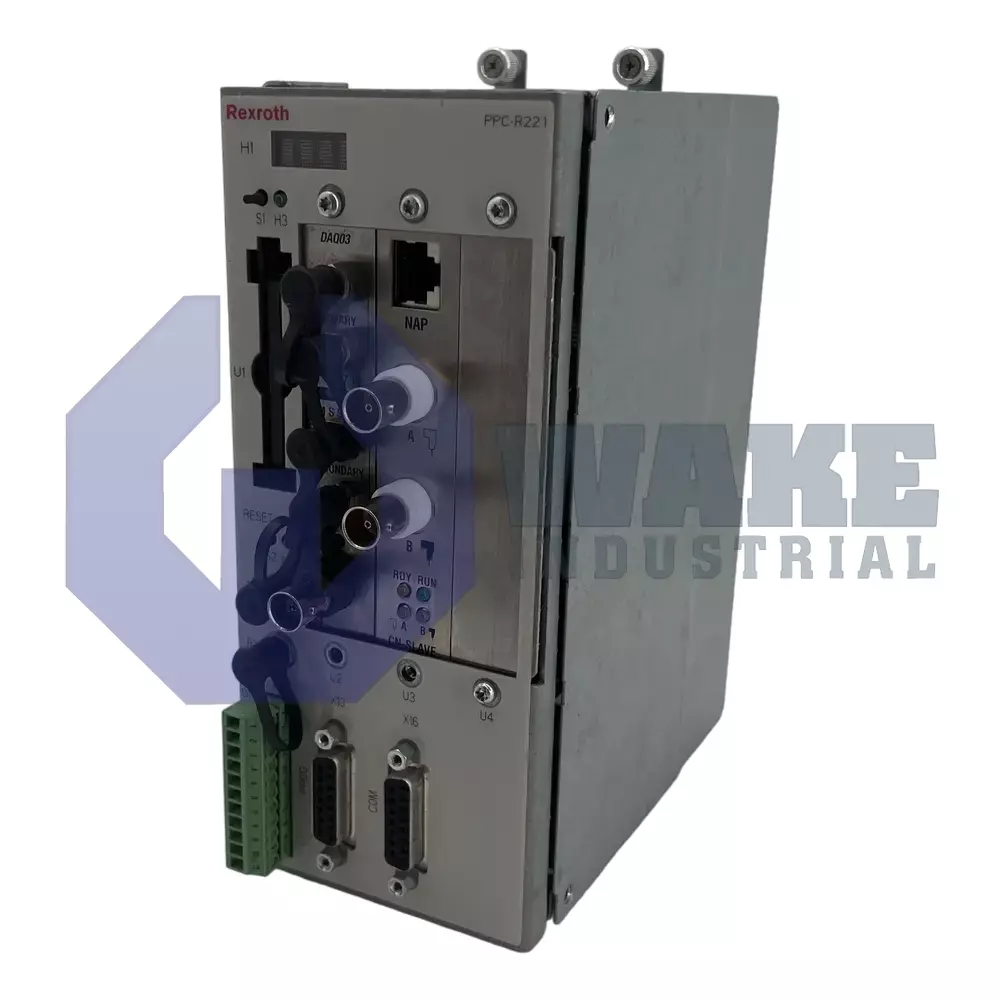

The Bosch Rexroth Indramat PPC-R22.1N-T-Q1-L2-NN-FW is a control unit in the PPC Controllers series with a 24 VDC supply voltage and a current consumption of 1.2 A. It features 3 expansion slots, 32 MB of flash memory, and supports ControlNet and Ethernet communication at speeds up to 5 MBaud and 100 MBaud respectively. The unit comes in a RECO double slot housing with an IP20 protection rating.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The PPC-R22.1N-T-Q1-L2-NN-FW control unit is produced by Bosch Rexroth Indramat within the PPC Controllers series. As a modular RECO housing, the device occupies two slots in the system rack and uses a backplane power feed rather than a separate local supply connection. In an automation cell, it coordinates motion, gathers process data, and exchanges real-time data through ControlNet and Ethernet networks. The platform integrates with drive-based motion controllers, PLCs, and SCADA hosts, so it can serve as the central processing node for machine control and plant communication.
The controller operates from a 24 VDC supply and draws 1.2 A, which helps size cabinet power distribution accurately. ControlNet communication is handled by the CNS01 slave interface at 5 Mbaud, and its polled data area provides 64 bytes in and 64 bytes out for cyclic control exchange. The Ethernet interface supports 10/100 Mbaud, allowing standard TCP/IP communication with connected systems. Three digital inputs and two digital outputs support local field signals, while two serial ports handle text-based communication. Cross communication over the DAQ03 channel and two link ring fiber pairs extends data exchange between adjacent PPC controllers.
Internal resources include 32 MB of flash memory for application storage, and no memory expansion module is installed. The unit also provides 3 expansion slots for optional interface cards while maintaining an enclosure rating of IP20 for finger-safe installation inside a control cabinet. This protection level is suitable for clean cabinet interiors with controlled airflow. The unit is design version 1, and service access is available through TCP/IP port 5001 without an added gateway. Its communication layout supports networked control tasks while keeping local signal handling and interface expansion in the same housing.
Frequently Asked Questions about PPC-R22.1N-T-Q1-L2-NN-FW:
Q: How many digital inputs are provided on the PPC-R22.1N-T-Q1-L2-NN-FW controller?
A: The PPC-R22.1N-T-Q1-L2-NN-FW controller is equipped with three digital inputs.
Q: What is the flash memory size on the PPC-R22.1N-T-Q1-L2-NN-FW?
A: This controller has a flash memory capacity of 32 MB for program and data storage.
Q: What supply voltage does the PPC-R22.1N-T-Q1-L2-NN-FW controller require?
A: The PPC-R22.1N-T-Q1-L2-NN-FW operates with a 24 VDC supply voltage.
Q: How many expansion slots are available on the PPC-R22.1N-T-Q1-L2-NN-FW?
A: It features three expansion slots for additional modules or interfaces.
Q: What are the ethernet speeds supported by the PPC-R22.1N-T-Q1-L2-NN-FW?
A: The ethernet interface can operate at speeds of either 10 or 100 MBaud.
