Product Description:

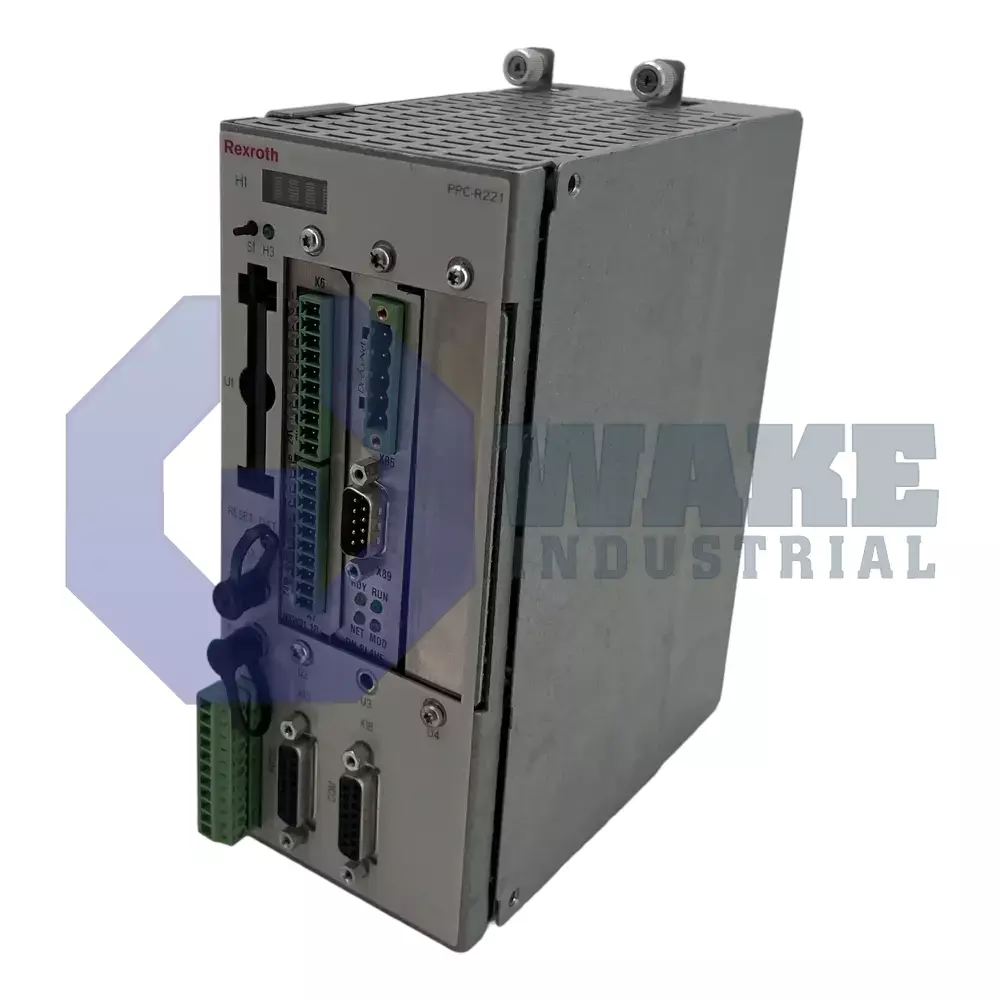

The PPC-R22.1N-T-N1-V1-NN-FW belongs to the PPC Controllers series produced by Bosch Rexroth Indramat. Delivered as design version 1 in a RECO housing, the device serves as centralized control hardware for multi-axis motion and process coordination in automated systems. This role lets one unit coordinate machine logic and axis-related functions from a central location in the cabinet. Its IP20 protection rating allows mounting inside a control cabinet where enclosure protection is already provided. Two onboard serial interfaces support legacy peripherals, while three expansion slots accept option hardware. One of these slots is normally occupied by the PLS module NSW01, which is used for high-speed position latch functions.

The controller operates from a nominal supply of 24 VDC and draws up to 1.2 A under peak computational load. Permanent data such as configuration files and user programs reside in a 32 MB flash array, and the unit does not include additional memory expansion. Fieldbus connectivity includes a DeviceNet channel that communicates at up to 500 KBaud, an Ethernet interface rated at 100 MBaud on port 5001, and a SERCOS master for real-time drive communication. A 4-digit alphanumeric display shows basic status codes and diagnostics, so operating states can be checked directly on the front of the controller.

Motion bus synchronization is handled by the SERCOS interface, which can run at 16 MBaud to maintain tight axis coordination between connected drives. Each discrete output channel can source up to 0.5 A, and the switching element adds only 500 µs of propagation delay. This short delay supports registration and switching tasks that depend on repeatable timing during machine cycles. Total installed mass is 1.3 kg, which helps the controller fit into compact cabinet layouts without adding much panel load.
