PPC-R22.1N-T-N1-N2-V1-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: 1070170299
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

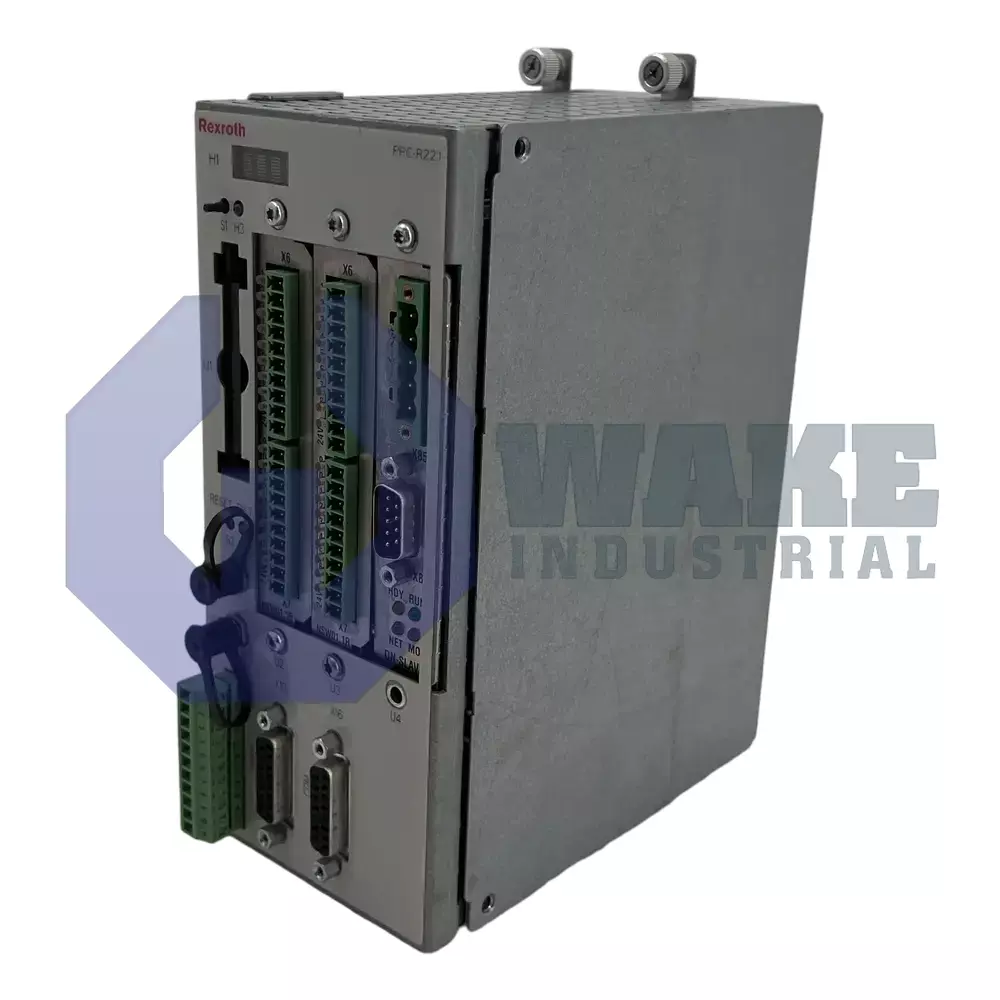

The Bosch Rexroth Indramat PPC-R22.1N-T-N1-N2-V1-FW is a control unit from the PPC Controllers series, featuring onboard Ethernet support and two serial ports. It has three digital inputs with a 50 microsecond delay, two digital outputs rated at 0.5 amps, and an IP20 protection rating. The unit supports a nominal supply voltage of 24 VDC and is equipped with a 4-digit alphanumeric display and three expansion slots.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The PPC-R22.1N-T-N1-N2-V1-FW is a control unit from the PPC Controllers series manufactured by Bosch Rexroth Indramat. It serves as the central motion and logic processor in cabinet-mounted automation cells, coordinating drives and I/O through SERCOS, Ethernet, and DeviceNet networks. Because motion control and logic execution are handled in the same unit, it can coordinate axis commands, machine sequences, and signal exchange from one cabinet location. Delivered as design version 1, the module uses a RECO housing with IP20 protection for protected indoor locations. Tasks run from a 32 MB internal memory card, and the real-time clock continues to keep time for up to three days after power loss. The unit does not provide additional memory expansion, so application storage remains limited to the installed internal card.
The controller draws a nominal 24 VDC supply and has a maximum current demand of 1.2 A, allowing it to share a standard 24-volt auxiliary supply with nearby control devices. A front-mounted 4-digit alphanumeric display shows operating and diagnostic codes, making status information visible without an external terminal. Network communication includes onboard Ethernet, while the optical SERCOS channel runs at 2 Mbit/s for closed-loop drive communication. With Ethernet and SERCOS available at the same time, the controller can separate general network traffic from deterministic drive signaling. Three opto-isolated digital inputs respond within 50 µs, and two transistor outputs can source up to 0.5 A each. The unit can also control a DeviceNet segment directly, so field devices can be connected without adding a separate gateway module.
System expansion is possible through 3 expansion slots, and one slot can accept the Option Card PLS module for applications that need 32 position-linked output pulses. Communication beyond Ethernet is supported by 2 serial ports, which can be used for parameter transfer or connection to a human-machine interface. The DeviceNet interface operates in Master mode, allowing the controller to initiate network exchanges and manage as many as 64 slaves. Serial links and DeviceNet can operate alongside the Ethernet and SERCOS interfaces, giving the controller separate channels for HMI access, drive communication, and distributed I/O.
Frequently Asked Questions about PPC-R22.1N-T-N1-N2-V1-FW:
Q: Does the PPC-R22.1N-T-N1-N2-V1-FW controller include Ethernet support?
A: The PPC-R22.1N-T-N1-N2-V1-FW features onboard Ethernet support for network connectivity.
Q: What is the maximum current consumption of the PPC-R22.1N-T-N1-N2-V1-FW?
A: This controller supports a maximum current consumption of 1.2 A.
Q: How many expansion slots are available on the PPC-R22.1N-T-N1-N2-V1-FW?
A: The PPC-R22.1N-T-N1-N2-V1-FW is equipped with three expansion slots for additional modules.
Q: What type of display is featured on the PPC-R22.1N-T-N1-N2-V1-FW controller?
A: A 4-digit alphanumeric display is used on this control unit for interface and status indication.
Q: What is the protection rating of the PPC-R22.1N-T-N1-N2-V1-FW?
A: The protection rating for this product is IP20, which limits protection from solid objects but not water.
