PPC-R22.1N-N-V2-P1-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911312541
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

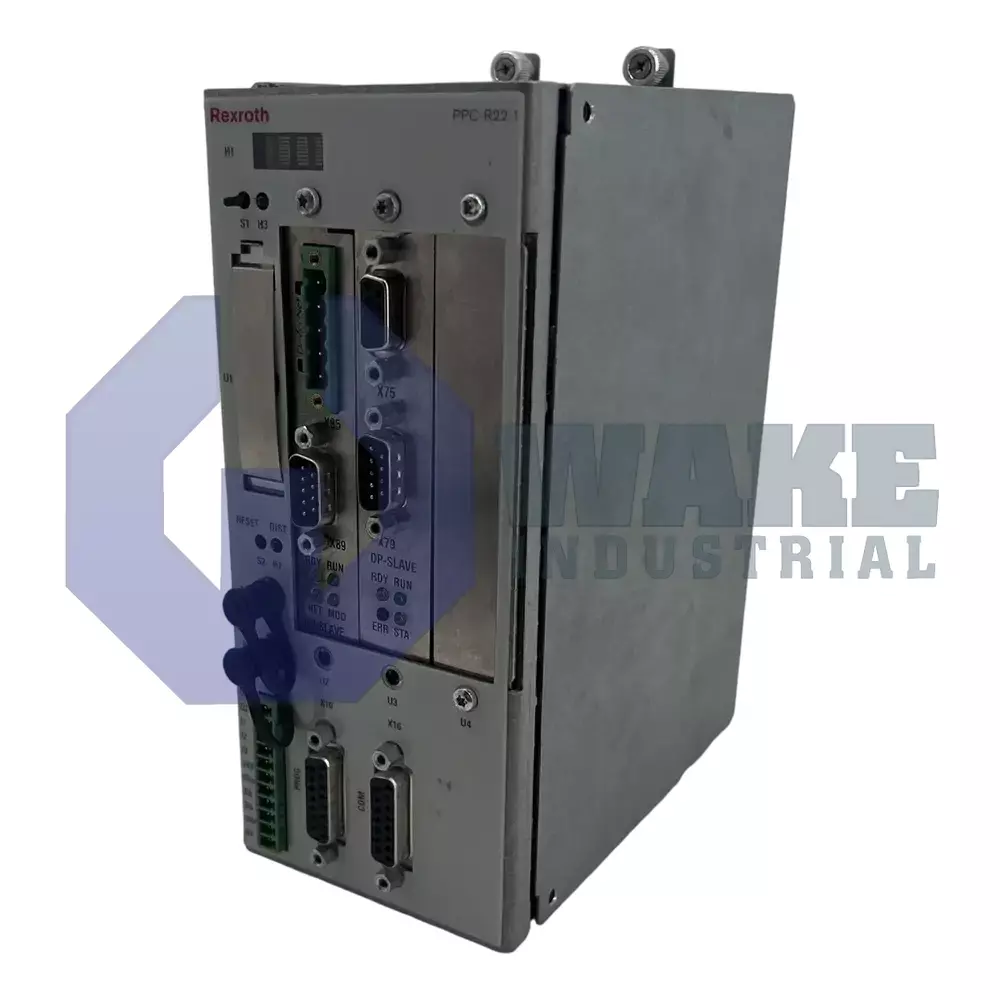

The Bosch Rexroth Indramat PPC-R22.1N-N-V2-P1-NN-FW is a control unit from the PPC Controllers series with a protection rating of IP20 and a weight of 1.3 kilograms. It offers 3 digital inputs with a delay of 50 microseconds and 2 digital outputs with a current of 0.5 amps and a delay of 500 microseconds. The controller is equipped with a DeviceNet fieldbus slave interface (DNS03) and supports mounting on RMB02.2 using TS 35x27x15 DIN rail.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The PPC-R22.1N-N-V2-P1-NN-FW is a control unit produced by Bosch Rexroth Indramat for the PPC Controllers series. As a standalone module, it coordinates motion and peripheral tasks inside multi-axis automation cells by relaying commands between a central PLC and SERCOS or DeviceNet networks. Installed on an RMB02.2 rail, the unit supplies sequencing, drive coordination, and diagnostic functions that support servo drives and field devices across assembly lines and packaging equipment. Its role is to keep machine communication organized while centralizing control tasks in a compact cabinet-mounted format.
Its power section is rated for a nominal supply of 24 VDC, and under full load it draws no more than 1.2 A, so standard control-cabinet supplies are sufficient. The compact RECO housing measures 165 mm deep, is 84 mm wide, and mounts on TS 35 × 27 × 15 DIN rails, giving a footprint that fits densely populated panels. An enclosure rating of IP20 provides basic touch protection when the cabinet door is closed. Internally, the controller can supervise up to 64 SERCOS drive axes, allowing centralized interpolation without additional master hardware. The unit does not include memory expansion, so all firmware and application code must reside in the onboard storage of this Design Version 1 board.
Discrete handling is provided through 3 In / 2 Out channels. Each input is latched within 50 µs, while outputs switch loads after a 500 µs delay and can source up to 0.5 A. Field communication is handled by a DeviceNet slave interface identified as DNS03, plus two serial ports, X10 RS-232/485 and X16 RS-232/422/485, for maintenance terminals or legacy drives. The absence of onboard Ethernet confines higher-level links to the existing fieldbus. With a mass of 1.3 kg, the unit installs securely on the TS rail, and the RECO enclosure supports stable operation during continuous 24 V service.
Frequently Asked Questions about PPC-R22.1N-N-V2-P1-NN-FW:
Q: How many digital input and output channels are available on the PPC-R22.1N-N-V2-P1-NN-FW controller?
A: The PPC-R22.1N-N-V2-P1-NN-FW has 3 digital inputs and 2 digital outputs, allowing direct integration with basic automation equipment.
Q: What fieldbus communication is supported by the PPC-R22.1N-N-V2-P1-NN-FW?
A: This controller features a DeviceNet fieldbus slave interface, DNS03, for easy connection to industrial networks.
Q: What is the required supply voltage for the PPC-R22.1N-N-V2-P1-NN-FW?
A: The nominal supply voltage for this control unit is 24 VDC, matching common industrial power systems.
Q: What is the maximum number of Sercos drives supported by the PPC-R22.1N-N-V2-P1-NN-FW?
A: Up to 64 Sercos drives can be managed by this controller, enabling complex multi-axis control.
Q: What is the mounting style for the PPC-R22.1N-N-V2-P1-NN-FW controller?
A: This unit is designed with a RECO housing for mounting on RMB02.2 rails on a TS 35x27x15 DIN system.
