Product Description:

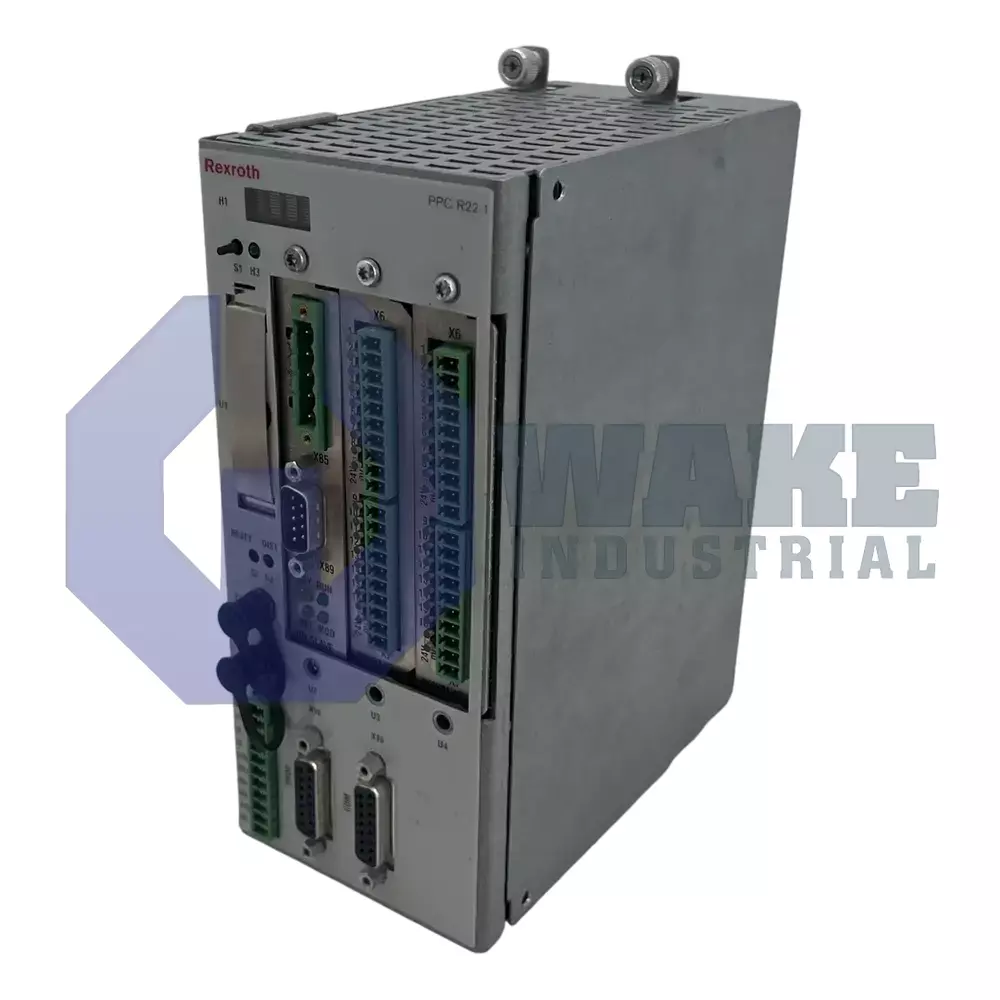

The PPC-R22.1N-N-V1-N1-N2-FW is a control unit produced by Bosch Rexroth Indramat within the PPC Controllers series. As a programmable platform, it coordinates motion and sequencing tasks by linking drive controllers, sensors, and supervisory computers in an automation cell. The unit accepts 24-VDC control power and presents a compact RECO housing so it can be installed on a DIN rail inside an IP-rated cabinet without additional mechanical adapters.

The controller operates from a supply of 24 VDC and draws logic power through a single plug-in terminal. A PowerPC 603e CPU clocked at PowerPC 266 MHz executes firmware and user code while a local bank of 32 MB SDRAM buffers real-time variables. Nonvolatile data such as machine offsets are stored in 128 KB of NVRAM. Three digital inputs and two digital outputs are provided; the outputs can source up to 0.5 A each for valve coils or relay drivers. A four-digit alphanumeric display shows status codes during commissioning. Network integration is handled by a DeviceNet master interface, and two RS-232/RS-485 serial ports support point-to-point devices. No onboard Ethernet is fitted, but an Option Card PLS module can be inserted for additional functionality. Design version 1 labeling matches the firmware family, and the unit ships without extra memory expansion sockets.

The RECO enclosure carries a protection level of IP20, so the installation environment must be clean and dry. Peak logic demand is 1.2 A, allowing the power supply to be sized with minimal headroom. Configuration files and recipe data can be backed up on a 32 MB CF flash card that plugs into the front slot. Total mass is 1.3 kg, keeping panel loads low and easing replacement during service. When the optional PLS card is absent, all remaining back-plane connectors remain inactive, which simplifies troubleshooting in multi-axis systems.
