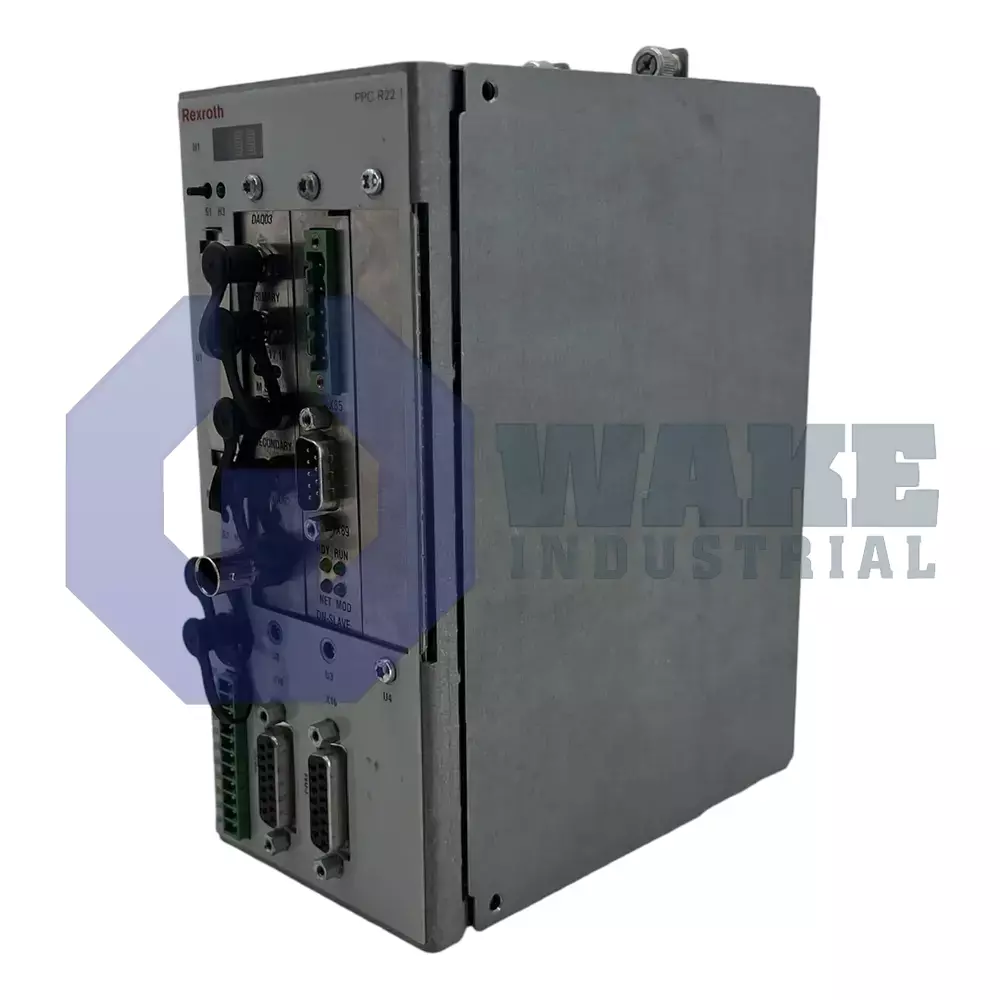

PPC-R22.1N-N-Q1-V2-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: 1070170282
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat PPC-R22.1N-N-Q1-V2-NN-FW is a control unit in the PPC Controllers series, with a supply voltage of 24 VDC and a maximum current draw of 1.2 Amps. It has DeviceNet fieldbus slave interface support, 3 digital inputs, 2 digital outputs, and a protection rating of IP20. The unit features two serial ports and weighs 1.3 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The PPC-R22.1N-N-Q1-V2-NN-FW control unit is produced by Bosch Rexroth Indramat and belongs to the PPC Controllers series. The device mounts beside Indramat drive modules and coordinates multiple axes and peripheral I/O through its internal processor. Two onboard serial channels allow direct parameter updates and diagnostics, and the processor exchanges process data with the plant’s higher-level PLC. Within an automation cell, it handles logical sequencing, gathers discrete input signals, and issues output commands to keep conveyor, packaging, or assembly machinery synchronized. This arrangement lets one module manage motion-related tasks and local control functions from the same cabinet position.
The controller operates from a nominal 24 VDC supply and draws up to 1.2 A during peak processing cycles. Supply fluctuation is tolerated if ripple does not exceed 4 Vpp. DeviceNet communication is established through the DNS03 interface at 500 KBaud, and the slave mapping allocates 64 In / 64 Out process data bits to the network scanner. Two serial ports allow point-to-point diagnostics, while three opto-isolated digital inputs and two transistor outputs share the common logic rail. Environmental protection is limited to IP20, so the unit must be mounted inside a closed cabinet. The RECO housing keeps the module width compact and supports straightforward cabinet integration. This combination of networked and local signals supports compact machine control without separate interface modules.
The DAQ03 mezzanine channel supports cross communication between neighboring PPC units and is powered by a dedicated 5 V rail that can deliver up to 700 mA. The output stage can switch loads drawing up to 0.5 A, making it suitable for pilot valves and stack lights. The module is shipped without memory expansion, and its control electronics use the version 2 design. With a mass of 1.3 kg, the housing matches the depth of adjacent drives and keeps cabinet airflow uniform around the DeviceNet wiring and digital I/O terminations. Its matched depth also helps preserve clearance around neighboring drive modules and cable runs.
Frequently Asked Questions about PPC-R22.1N-N-Q1-V2-NN-FW:
Q: What is the DeviceNet communication speed supported by the PPC-R22.1N-N-Q1-V2-NN-FW controller?
A: The PPC-R22.1N-N-Q1-V2-NN-FW controller features a DeviceNet baud rate of 500 KBaud for industrial network communication.
Q: How many input and output channels are supported on the DeviceNet interface of this controller?
A: This unit accommodates up to 64 input and 64 output points on the DeviceNet I/O interface.
Q: What is the required supply voltage for the PPC-R22.1N-N-Q1-V2-NN-FW controller?
A: The PPC-R22.1N-N-Q1-V2-NN-FW operates at a supply voltage of 24 VDC for main power requirements.
Q: What type of housing design does the PPC-R22.1N-N-Q1-V2-NN-FW use?
A: This model is built with a RECO housing design for its enclosure.
Q: What protection rating does this PPC controller model offer?
A: The PPC-R22.1N-N-Q1-V2-NN-FW has an IP20 protection rating.
