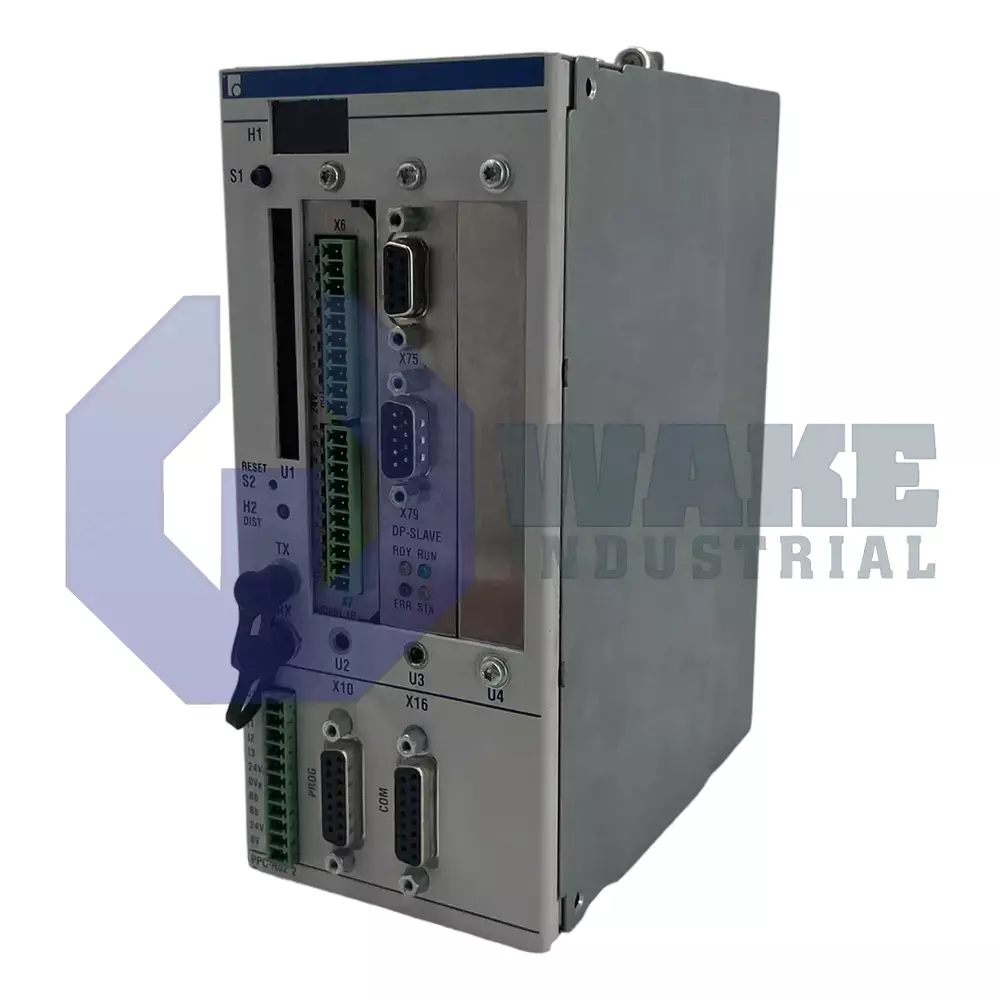

PPC-R02.2N-N-N1-P2-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911290005
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat PPC-R02.2N-N-N1-P2-NN-FW is a control unit from the PPC Controllers series. It features a Profibus fieldbus slave interface and comes in a RECO unit housing design. This model includes an option card PLS module, design version 2, but is not equipped with memory expansion.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The PPC-R02.2N-N-N1-P2-NN-FW is a programmable motion and logic controller produced within the PPC Controllers series. The unit operates as the supervisory node in multi-axis drive assemblies, coordinating commands between drives and higher-level PLCs in industrial automation cells. This arrangement lets the controller manage sequencing, axis coordination, and data exchange between machine sections without placing all logic inside individual drives. As a Control Unit, it exchanges process images and command data rather than delivering power directly to field devices.
The controller is built as Design Version 2, indicating the second revision of this platform. For field-level networking, it carries a Profibus fieldbus slave interface DPS01, enabling cyclic data exchange with a Profibus master at standard baud rates. Installation inside a cabinet uses the RECO unit form factor, so the module slides onto a DIN rail carrier, shares the same 24 V DC power bus as adjacent Rexroth cards, and fits neatly into modular control racks. It is supplied with no memory expansion, so the available storage remains limited to the onboard capacity. Larger program archives therefore have to be stored on external equipment rather than on a plug-in memory card.
In addition, a removable Option Card PLS module NSW01 fits into the front connector to generate cam signals that synchronize drives to encoder positions during packaging or press operations. That function is useful where electronic cam profiles must stay aligned with a moving master axis during repeated cycles. Within the series, the controller is Series 2, and it is produced by Bosch Rexroth Indramat. The compact cabinet-mounted layout combines the Profibus channel, the PLS option, and fixed onboard memory in one enclosure, which supports deterministic motion behavior and keeps wiring straightforward in multi-axis systems.
Frequently Asked Questions about PPC-R02.2N-N-N1-P2-NN-FW:
Q: What fieldbus interface is available on the PPC-R02.2N-N-N1-P2-NN-FW controller?
A: The PPC-R02.2N-N-N1-P2-NN-FW is equipped with a Profibus fieldbus slave interface, type DPS01.
Q: Which option card is installed in the PPC-R02.2N-N-N1-P2-NN-FW from Bosch Rexroth Indramat?
A: This model features an option card PLS module, identified as NSW01.
Q: What housing design does the PPC-R02.2N-N-N1-P2-NN-FW controller use?
A: The PPC-R02.2N-N-N1-P2-NN-FW controller uses the RECO unit housing design.
Q: Is the PPC-R02.2N-N-N1-P2-NN-FW controller equipped with memory expansion?
A: This unit is manufactured without any memory expansion component.
Q: What is the design version of the PPC-R02.2N-N-N1-P2-NN-FW controller?
A: The PPC-R02.2N-N-N1-P2-NN-FW belongs to design version 2.
